SKU:  TOOLIM8S

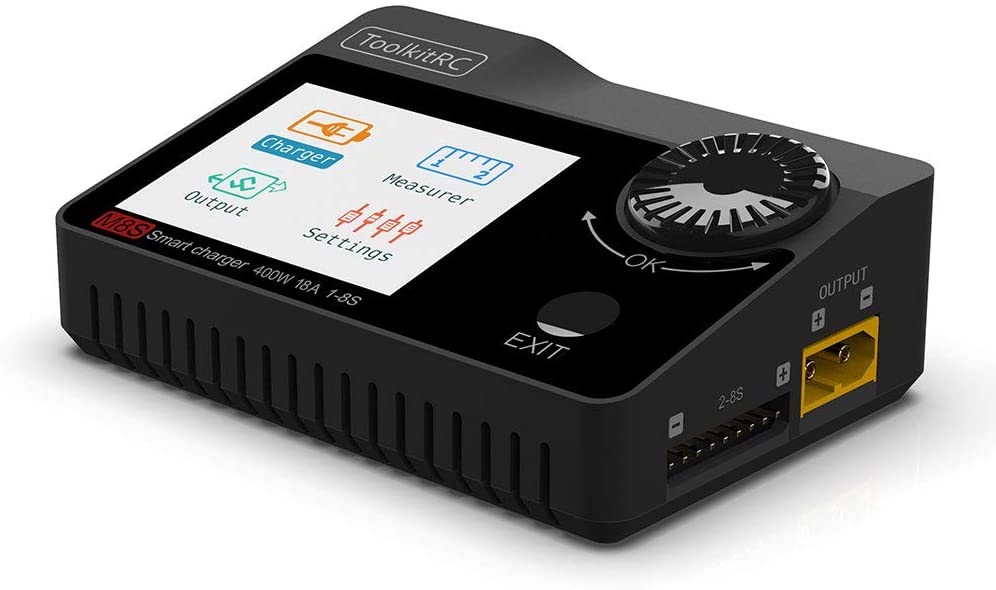

ToolkitRC M8S 400W 5A 2-8S Balance Charger/ Cell Checker/ Watt Meter/ Servo Tester - Black
Customers rating.
Add To Wish List
Added:2021/04/22
Updated:2021/04/22
Follow Us on:


  Tags: ToolkitRC  M8S  400W  5A  2-8S  Balance  Charger  Cell  Checker  Watt  Meter  Servo  Tester  Black

Features:
The ToolkitRC M8 is a multi-function device, besides a  300w 15A charger, it integrated with a servo tester, cell checker, a watt meter, PWM/PPM/Sbus input testers and output generators along with a variable voltage and amperage DC output control.


Features
Battery Charger
Cell Checker
Servo Tester
PWM,PPM.SBUS Input/output Receiver & Flight control tester
Viable AMp/volt DC Power supply (Required external DC input)
Specifications:

ToolkitRC M8S 400W 5A 2-8S Balance Charger/ Cell Checker/ Watt Meter/ Servo Tester - Black


Specifications
Charge, discharge and balance management support LiPo, LiHV,
LiFe 1-8S,NiMh 1-20S,PB 1-12S battery.
Charger current:MAX 15A @ 300W
Discharge current:reccycle mode 15A @ 300W Normal: 3A @ 20W
Balance current: 400mA @ 2-8S
Lithium battery cut-off voltage can be set (TVC function)
Measure battery voltage, internal resistance, balance
ESC power meter, together with output voltage and throttle signal
Measure PWM / PPM / xBUS signal values, Accuracy 1ms
Output PWM / PPM / xBUS standard signal, Accuracy 1ms
Customizable 5-30V constant voltage, 1-15A constant current
Charge the drone battery, activate and charge.
Multi-language optional
USB 2.1A@5.0V Output,for Mobile devices
Udisk firmware upgrade (Slave device)
Charger


Input voltage: 7.0-30.0V @MAX 16A
Type of battery: Lipo LiHV LiFe @1-8S
NiMh @1-20S Pb @1-10S
Balance current: 400mA @2-8S
Charge power: 300W @MAX 15A
Discharge power: 300W @MAX 15A Recycle mode
12W @ 3A Normal mode
USB: 2.1A @5.0V or Upgrade
Dimensions: 98*68*35 mm
Weight: 142g
LCD: 2.2inch, 132*64 Pixel,black and white
Measurement


PWM: 880-2200us @20-400Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Voltage: 1.0-5.0V @1-8S
IR: 10-500mR @1-8S
ESC: 300W @Max 15A
Output


PWM: 880-2200us @20-400Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Power: 1.0-30.0V @1.0-15A Mode:CC+CV
OverCurrent Cut Off time: 50ms
Includes/Requires:
Includes:
1 x ToolkitRC M8 Muti-function charger
