Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner SUNNYSKY X4110S 680KV Outrunner Brushless Motor for Multi-rotor (4S, power oriented)
   Multi-rotors Motors
SKU:  X4110S68
SUNNYSKY X4110S 680KV Outrunner Brushless Motor for Multi-rotor (4S, power oriented)
Customers rating.
Add To Wish List
Added:2013/12/03
Updated:2013/12/03
Follow Us on:



  Tags: multi-rotor  brushless motor sunnysky

Features:
This type is apt to power than efficiency,  it is suitable for plateau environment application, it delivers more pull under normal environment.
Specifications:

SUNNYSKY X4110S 680KV Outrunner Brushless Motor for Multi-rotor (4S, power oriented)

Model: X4110S 680KV

Stator Diameter41mm
Stator Thickness10mm
No. of Stator Arms12
No. of Stator Poles14
Motor Kv 680
No-Load Current (A/10V) 0.6A
Motor Resistance 38mΩ
Max Continuous Current 40A/30S
Max Continuous Power592W
Weight148g
Outside Diameter48.2mm
Shaft Diameter4mm
Body Length30.5mm
Overall Shaft Length36.5mm
Max Lipo Cell 4S
Recommended Prop(inch) APC12x3.8; APC 14 x 4.7; DJI 15x 5.5


PropVoltsAmps Thrust(g)RPMWatts (W)Efficiency
(g/W)		Under load temperature @ full throttle
(inch)(V)(A)(RPM/Min)
APC123814.81210247714.814.2
2340321429.611.5
3460371144.410.4
4560403759.29.5
56704354749.1
6770462088.88.7
78504817103.68.2
89405031118.47.9
910205194133.27.7
10109053741487.4
1212305691177.66.9
15140059742226.3
1815506342266.45.8
2117306600310.85.6
2418506840355.25.2
2719807037399.65.0
33.122207380489.884.563°
APC144714.81220199714.814.9
2350256229.611.8
3490299144.411.0
4610329159.210.3
57303548749.9
6810376288.89.1
79103968103.68.8
810004148118.48.4
910604294133.28.0
10114044481487.7
1212904705177.67.3
15148050222226.7
1816705280266.46.3
2118205528310.85.9
2419805708355.25.6
2721005905399.65.3
30222060684445.0
35240062915184.6
40.425806531597.924.383°
DJI155514.81240204014.816.2
2380267429.612.8
3520312044.411.7
4640346259.210.8
575037807410.1
6860406288.89.7
79604285103.69.3
810604482118.49.0
911504662133.28.6
10124048421488.4
1213905168177.67.8
15160055202227.2
1818005854266.46.8
2119906154310.86.4
2421506402355.26.1
2723106591399.65.8
30246068054445.5
35.726707148528.365.178°

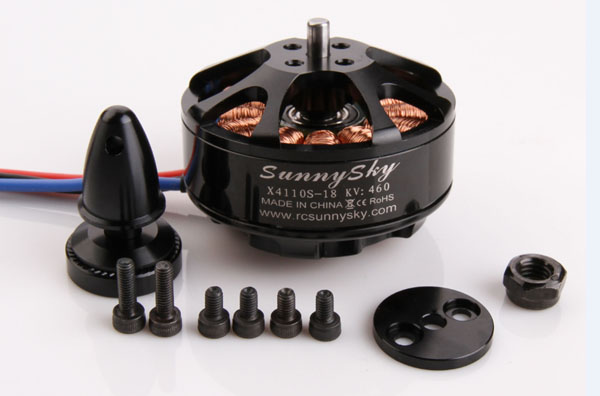

Includes/Requires:
Includes:
1 x motor
1 x prop adaptor
1 x prop holding-down plate
 6 x screws

* Price is for one motor.
