EMAX 385KV Outrunner Brushless Motor for 3 to 6kg Airplane Type BL4030

* High temperature and magnetic give the motor higher efficiency and extra power.
* Silicon steel lowers energy consumption.
* Motor is accurately CNC machined. This gives smoother and quieter running.
* Bearings are made of high temperature and high carbon steel.

Type: BL4030
No. Of cells: 5 to 7S Li-Poly
Max. efficiency: 86%
Max. efficiency current: 40 to 50A (>78%)
No load current / 10 V: 2.1 A
Current capacity: 51A / 60s
Dimensions: 41 x 20 mm
Shaft diameter: 8 mm
Weight: 325 g/ 11.5oz
Recommended model weight: 3 - 6kg
Recommended prop without gearbox: 14 x 7, 16x 10

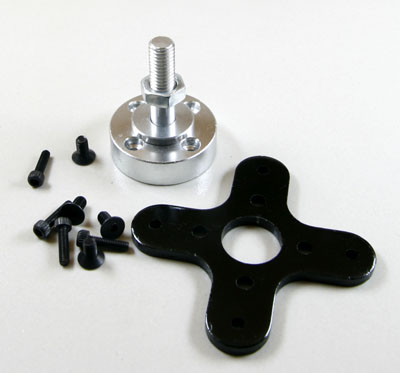

Includes:
1 x brushless motor
1 x cross type motor mount
1 x prop adaptor

Average Customer Review: 5 stars

3 customer review(s). [Write a review/question]

l****drokemp
STD member

Grade:

Hélice 16x6 master screw k-series para glow:
V....RPM...A....W...Kg...Km/h....Stick acelerador
25..8000..33...800..5,0...86,0.........100%
25..6200..15...380..2,9...66,0.........75%
25..4500...6...163..1,5...48,0.........50%

Fantástico
October 14 2011 Was this review helpful to you?

Yes [ 1 ]

No [ 0 ] [Reply this review]

l****drokemp
STD member

Grade:

Hélice 13x6 master screw de madeira para elétricos:
V...RPM...A.....W.....Kg.....Km/h....Stick acelerador
25..8300. 28...700...3,1.....76,0.........100%
25..6100..10...280...1,6.....56,0..........75%
25..4590..5....130...1,0.....42,5..........50%
October 14 2011 Was this review helpful to you?

Yes [ 1 ]

No [ 0 ] [Reply this review]

z****tuhinsv
Silver member

Grade:

Hello, I use this motor on sebart angel with JXF 16x10 inch Beechwood Propeller for Electric Engine, 6s lipo, 80A ESC. Ihave a trust 4500gr and 1000watt power, 48amp. I not recomended use this motor with APS (or APS style) props, with APS 16*10 trust is 4000gr and 1200watt power 55amp.
December 07 2009 Was this review helpful to you?

Yes [ 9 ]

No [ 0 ] [Reply this review]
