   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner DUALSKY XM4010TE-7 620KV Outrunner Brushless Disk Type Motor for Multi-rotor
   Multi-rotors Motors
SKU:  4010-7
Browse DUALSKY

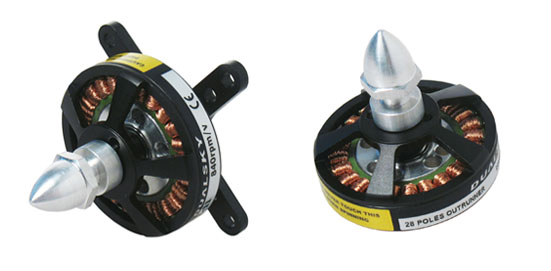

DUALSKY XM4010TE-7 620KV Outrunner Brushless Disk Type Motor for Multi-rotor
Customers rating.
Add To Wish List
Added:2012/06/16
Updated:2012/06/16
Follow Us on:


  Tags: multi-rotor  brushless motor  dualsky

Features:
28 poles. High torque. High efficiency. Specifically designed for Multi Rotor.It also can be used for Remote control aircrafts.

Specifications:
Model: XM4010TE-7
KV: 620RPM/V
Weight: 78g
Diameter: 40mm
Length: 25mm
Diameter of Shaft: 3.175mm
Mounting holes pitch: 16/19mm
Slots,Poles: 24, 28
Idle Current(Io) @10V: 1.1A
Resistance(Ri): 86mOhm
Cruising power[8 mins]: 186.13W
Bursts current[15s]: 22.87A
Peak power[15s]: 338.41W
Recommended ESC: XC2512BA
Setup 1 (No. of Cell, Prop.): 4S, 12x5
Setup 2 (No. of Cell, Prop.): 5S, 9x5
Max. weight of 4-rotor copter: 1.86kg
Max. weight of 3D models: 0.62kg
Memo: 2KG 4-rotor copters, 480 class airplanes


Includes/Requires:
Includes:
1 x motor
1 x prop adaptor
1 x motor mount
4 x prop adaptor screws
