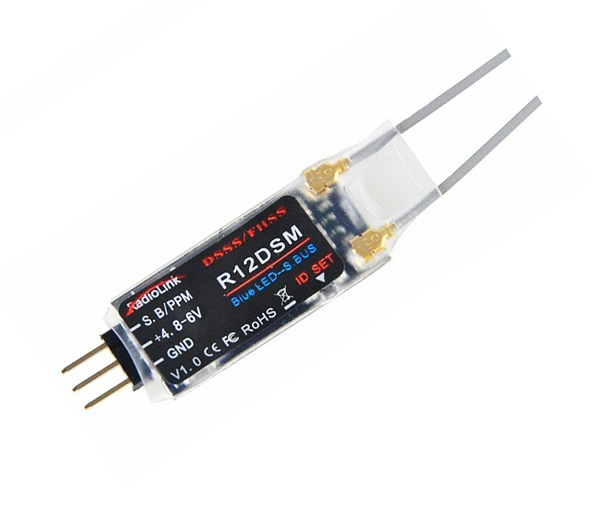

Radiolink R12DSM 2.4G 12 Channels DSSS FHSS Receiver for AT9 AT9S AT10 AT10II Transmitter
Customers rating.
Add To Wish List
Added:2019/08/13
Updated:2019/08/13
Follow Us on:


  Tags: Radiolink  R12DSM  2.4G  12  Channels  DSSS  FHSS  Receiver  for  AT9  AT9S  AT10  AT10II  Transmitter

Features:
Radiolink R12DSM 2.4G 12CH receiver, DSSS and FHSS hybrid dual spread spectrum, 2.5 gram weight, SBUS and PPM signal support, use for Radiolink transmitters AT9, AT9S, AT10 and AT10II, is the best choice for racing drone.


Features:
* Only 1 gram of weight.
* Radiolink R12DSM, 2.4G 12CH receiver.
* DSSS and FHSS spread spectrum working synchronousl.
* SBUS and PPM signal support, use for Radiolink transmitters AT9,AT9S,AT10 and AT10II, is the best choice for racing drone.


Two signal working mode:
Blue/purple LED, SBUS signal, 12 channels totally.
Red LED always, PPM signal, 12 channels totally.

SBUS and PPM signal change:
Short press the ID SET switch two times within 1 second, the signal is changed from SBUS to PPM. The red LED indicates the PPM and blue/purple indicates SBUS.

How to bind with transmitter:
1. Place the transmitter and the receiver close to each other within 1 meters.
2. Turn on the transmitter, then power on the R12DSM.
3. There is a black button on the R12DSM, press the binding button twice in two seconds and release, receiver light start blinking, after about 8 times blinking, match code success when receiver signal LED always on!
Specifications:

Radiolink R12DSM 2.4G 12 Channels DSSS FHSS Receiver for AT9 AT9S AT10 AT10II Transmitter



Brand name: Radiolink
Item number: R12DSM
Channels: 12 channels
Working voltage: 4.8-6V
Working current: 40-180mA (input voltage: 5V)
Size: 30*15 MM
Weight: 2.5g
4096 section precision, 0.5us per section, servo anti-shake rudder.
Control distance: about 1100 meters ground and 4000 meters air, actually control distance depends on the environment.
Includes/Requires:
Includes:
1 x receiver R12DSM
