   Radios Servos & Accessories Digital Servo & Accessories Power HD 29g/ 4.8Kg/ .09sec Metal Gear High Speed Digital Servo 3689MG (500-550 class heli swashplate servo)
SKU:  3689MG
Browse Power HD

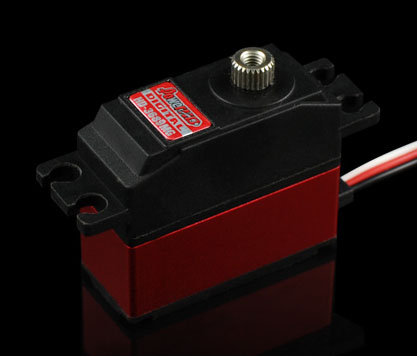

Power HD 29g/ 4.8Kg/ .09sec Metal Gear High Speed Digital Servo 3689MG (500-550 class heli swashplate servo)
Customers rating.
Add To Wish List
Added:2012/12/15
Updated:2012/12/15
Follow Us on:



  Tags: Power  HD  29g  4.8Kg  .09sec  Metal  Gear  High  Speed  Digital  Servo  3689MG  500-550  class  heli  swashplate  servo

Features:
Good choice for 500-550 class helicopter swashplate servo.

Two ball bearings.

Coreless brushless motor
Specifications:
Type: 3689MG
Weight: 29 grams
Torque: 4.2 kg-cm @ 4.8V; 4.8 kg-cm @ 6V
Speed: 0.10 sec (4.8V) │ 0.09 sec (6.0V)
Voltage: 4.8 ~ 6.0V
Dimension: 35.0 x 15.1 x 29.5 mm

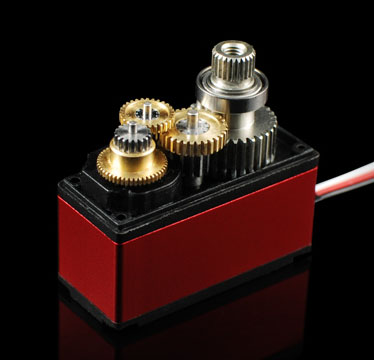

Gear material: Brass & Aluminium alloy
Wording frequency: 1520μs / 333hz
Includes/Requires:
Includes:

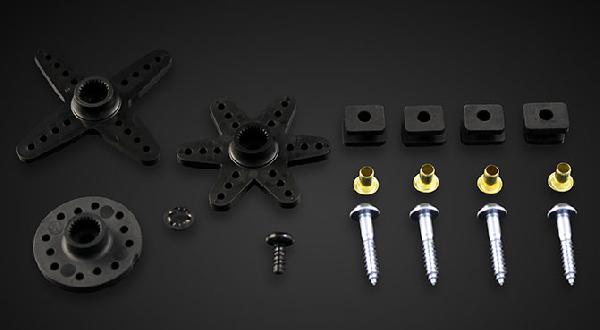

1 x digital servo with servo horns
