WH-80KG full metal CNC shell large torque servo, double bearings, torque up to 80KG at 8.4V, equipped with stainless steel gears, so that the large scale model car driving process gear strength to get better protection, the product is compatible with most of the 1/5, 1/6 scale climbing, big foot, short truck and other models on the market, such as Axial 1/6 SCX6 crawler, Losi 1/6 Super Baja Rey, Losi Super Rock Rey, Arrma 1/5 Kraton RTR, Arrma 1/5 Kraton EXB, Arrma 1/5 Outcast RTR, Arrma 1/5 Outcast EXB ect. large scale model cars/trucks, 15T output teeth spline directly upgrade the original factory servo perfectly.
PowerHD 80Kg Large Torque All Metal Digital Servo (for Arrma 1/5, Axial 1/6 crawler)
Torque(6.0V): 60.0 kg-cm / ( 833.2 oz/in ) Torque(7.4V): 75.0 kg-cm / ( 1041.6 oz/in ) Torque(8.4V): 80.0 kg-cm / ( 1111.0 oz/in ) Speed: 0.20 sec (6.0V) │ 0.18 sec (7.4V) Speed: 0.17 sec (8.4V) Operating Voltage：6.0 ~ 8.4 DC Volts Weight: 186 g (6.56 oz) Horn gear spline: 15T Bearing Type：Ball Bearing x 2 Gear Type：Steel Operating Temperature：-20℃~60℃ Working frequence：1520μs / 333hz Size：59.4 x 29.5 x 53.4 mm ( 2.34 x 1.16 x 2.10 in)

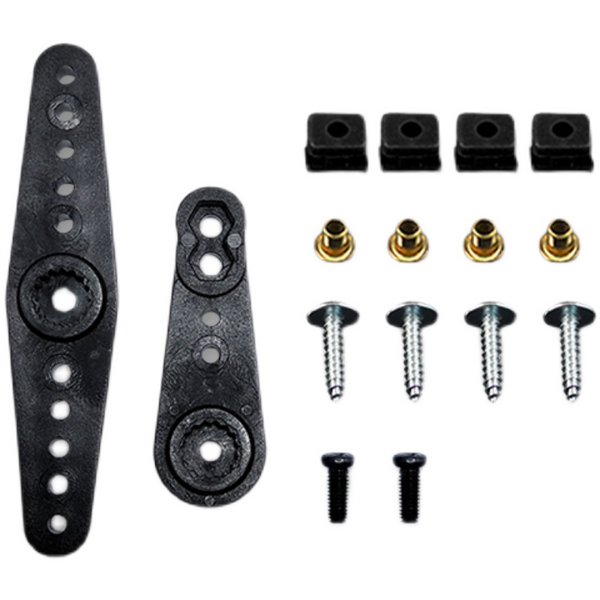

Includes: 1 x servo 1 x accessory bag
