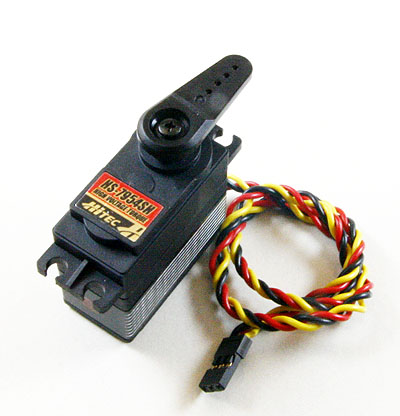

Hitec 65g/ 29kg / .12 sec Digital High Torque HV Coreless Stell Gear Servo (LiPo cell compatible) HS-7954SH
Customers rating.
Add To Wish List
Added:2010/08/06
Updated:2010/08/06
Follow Us on:


  Tags: Hitec  titanium gear  digital servo  high voltage servo  HS-7954SH

Features:
The HS-7954SH could be considered the most economical high voltage, high torque, coreless servo on the market. Based on the ultra popular HS-7955TG, the HS-7954SH has the added benefit of our high voltage coreless motor. With 403 inch ounce of torque at 7.4 volts, the HS-7954SH is fast too with a 0.12 second transit time when operating on a 2 cell LiPo pack. The HS-7954SH harnesses all this power by utilizing a heavy duty case that incorporates an aluminum heat sink, hardened steel gears, and two strong steel gear pins nested in brass axial bushings. Put it all together and you get one tough high voltage servo at a price that can't be beat.

Features

* G2 Digital Circuit
* HV Coreless Motor
* Dual Ball Bearing Supported Output Shaft
* Steel Gear Train (MK first gear)

Programmable Features Include:

- Dead Band Width
- Direction of Rotation
- Speed of Rotation (slower)
- End Points
- Neutral Points
- Fail Safe On/Off
- Fail Safe Point
- Resolution* (default is high resolution)
- Overload Protection* (default is off)

*These features are only programmable with the HFP-20 field programmer. (programmer not included)
Specifications:
Motor Type: Coreless
Bearing Type: Dual Ball Bearing
Speed (6.0V/7.4V): 0.15 / 0.12
Torque oz./in. (6.0V/7.4V):333 / 403
Torque kg./cm. (6.0V/7.4V):24.0 / 29.0
Size in Inches: 1.57 x 0.78 x 1.45
Size in Millimeters: 39.88 x 19.81 x 36.83
Weight oz.: 2.30
Weight g.:65.20

Applications:
- Aircraft 20-120 class
- All EP helicopters 600-700 & GP 30-90 class
- Cars 1/10 buggy and gasoline 1/4 scale steering and throttle
- Gasoline & GP boats
