   Radios Servos & Accessories Digital Servo & Accessories Hitec 62g/ 12.4kg / .13 sec Coreless Digital Metal Gear Dual BB Servo HS-7985MG
SKU:  HS7985MG
Browse Hitec

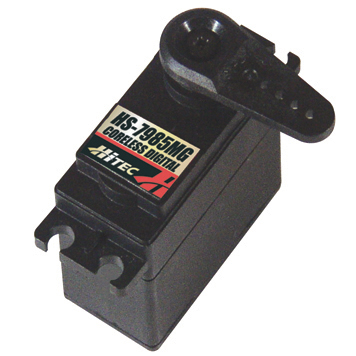

Hitec 62g/ 12.4kg / .13 sec Coreless Digital Metal Gear Dual BB Servo HS-7985MG
Customers rating.
Add To Wish List
Added:2009/07/24
Updated:2009/07/24
Follow Us on:


  Tags: Hitec  Metal Gear  dual BB  digital servo  HS-7985MG

Features:
The new HS-7985MG High Torque Digital Servo has the added benefit of our new G2 second generation programmable digital circuit. This circuit has twice the resolution of our original circuit while adding programmable overload protection. The technology doesn’t stop at the circuit board, with a high performance coreless motor, dual ball bearing suported output shaft, bushing supported gear shafts and ourHeavy Duty Metal gear train the HS-7985MG was designed to withstand the stress of larger high performance aircraft and on/off road vehicles.

# G2 Digital Circuit
# Coreless Motor
# Dual Ball Bearing Supported Output Shaft
# Metal Gear Train (MK first gear)

Programable Features Include:

* Dead Band Width
* Direction of Rotation
* Speed of Rotation (slower)
* End Points
* Neutral Points
* Fail Safe On/Off
* Fail Safe Point
* Resolution* (default is high resolution)
* Overload Protection* (default is off)

*these features are only programable with the HFP-20 field programmer
Specifications:
Motor Type: Coreless
Bearing Type: Dual Ball Bearing
Speed: 0.16 / 0.13 sec @ 60 deg.
English Metric
Torque: 144 / 172 oz.in (4.8v/6v) 10.4 / 12.4 kg.cm
Size: 1.57" x 0.78" x 1.45" 40.00 x 20.00 x 37.00mm
Weight: 2.18oz 62.00g

APPLICATIONS
Large air plane models.
