   Radios Radio Sets RF Module / Receivers & Accy FrSky 2.4G S.Port JR/Graupner Type 16ch Duplex Telemetry Module
   FPV/ Aerial Photography Telemetry/ Data logger
SKU:  FRSXJT
Other Items of Interest
Browse FrSky

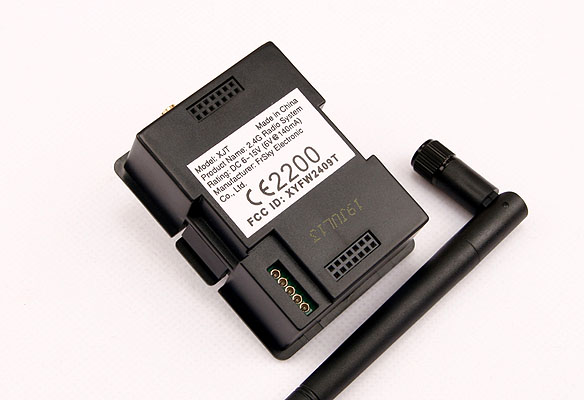

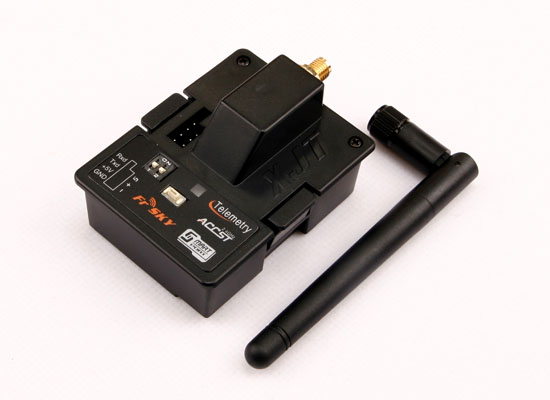

FrSky 2.4G S.Port JR/Graupner Type 16ch Duplex Telemetry Module
Customers rating.
Manual:
Add To Wish List
Bookmark and Share
Added:2013/07/30
Updated:2013/07/30
Follow Us on:

6F6R69887228

PRICE(USD):
    $50.66   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: FrSky  2.4G  2.4GHZ  two-way  2-way  telemetry  JR/Graupner compatible  smart port

Features:

What's New:

- Two auto-detected modulations of PXX (mode selection, bind, model match, range check, fail safe, etc. on radio side) or CPPM.
- Three selectable modes of D8 (existing 8ch two-way), D16 (new 16ch two-way full duplex transmission) and LR12 (new 12ch one-way long range)
- Smart Port enabled, realizing two-way full duplex transmission.
- Detect the module antenna's working status and give sound warnings if the module antenna is broken or does not have intact contact, etc.
- Super lower latency (approx. 1/3 of current systems) and higher precision (transmitter's hardware and software support required, such as FrSky transmitters).

Specifications:

FrSky  2.4G  S.Port JR/Graupner Type 16ch Duplex Telemetry Module


Transmitter module specifications:
Model: XJT
Operating Voltage Range: 6.0V-15.0V
Operating Current: 140mA @6V, 80mA @ 12V
Output Power:  ≤ 100mW
Module Slot: JR/ Graupner type
Modulations: PXX or CPPM (auto-detected)
Modes: D8, D16 or LR12 (selectable)
Telemetry interface: Smart Port, RS232 Serial Port
Upgrade interface: Smart Port, RS232 Serial Port

Includes/Requires:
Includes:
1 x RF module
Customers who bought the above may also need
PictureStock NumberManufacturer & Product DescriptionPriceQTYSelectStock Status
Click for the detail!X8RPCBFrSky 2.4G S.Port 8/16ch Telemetry Receiver X8R - PCB Antenna$41.37In stock
Click for the detail!X8RSTDFrSky 2.4G S.Port 8/16ch Telemetry Receiver X8R - Standard Antenna$32.94Discontinued
Customer Reviews:
Average Customer Review: 5 stars   3 customer review(s).   [Write a review/question]

G****555
Grade:
FrSky XJT 2.4G S.Port JR/Graupner
September 02 2019     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]


G****555
Grade:
I wanted to buy such a module. Send exactly the same as in the photo one-on-one with capital letters on the case = XJT =

Хотел приобрести такой модуль.Высылаете точно такой как на фотографии один в один-с большими буквами на корпусе = XJT
September 02 2019     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]


merighi****ail.com
Question :
Greetings all
this Tx it is compatible with Turnigy 9x?

Thanks
May 24 2014     Was this question helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this question]
Discussion of this question:

Yes it is! works on mine
-- Sep 01 2014 by rudger
