   Radios Servos & Accessories Mini / Micro Servos Corona 4.6kg / 0.13sec / 22g Metal Gear High Voltage Thin Wing Servo CS-239HV
SKU:  CS239HV
Browse CORONA

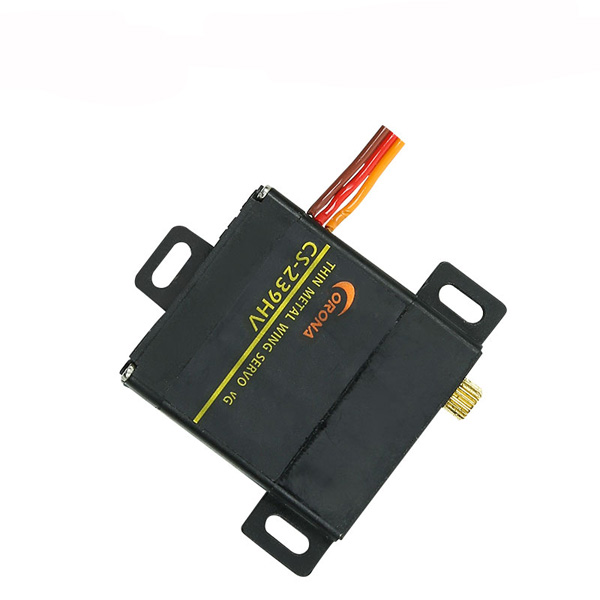

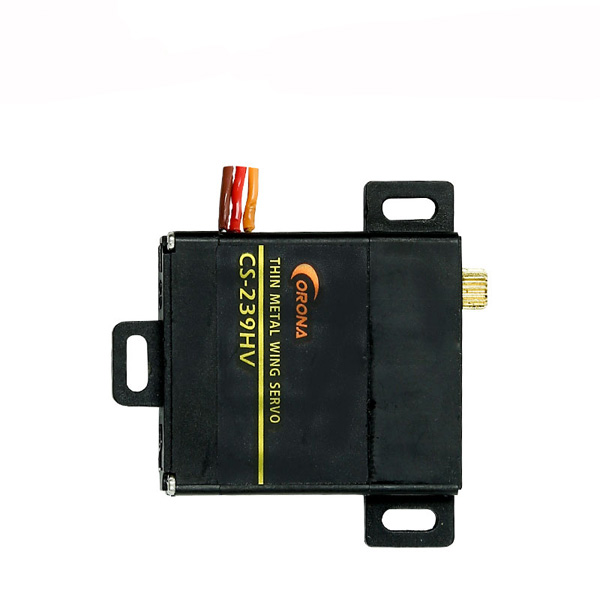

Corona 4.6kg / 0.13sec / 22g Metal Gear High Voltage Thin Wing Servo CS-239HV
Customers rating.
Add To Wish List
Added:2020/10/09
Updated:2020/10/09
Follow Us on:



  Tags: Corona  4.6kg  0.13sec  22g  Metal  Gear  High  Voltage  Thin  Wing  Servo  CS-239HV

Specifications:

Corona 4.6kg / 0.13sec / 22g Metal Gear High Voltage Thin Wing Servo CS-239HV


Item： CS239HV
Size： 30x10x34.5mm(1.18"x0.4"x1.35")
Weight： 22g(0.77OZ)
Voltage： 6.0V /7.4V
Current： 300mA / 400mA
Operating speed： 0.14sec.60º/ 0.13sec.60º
Stall Torque： 4.kg.cm / 4.6kg.cm
Dead Band： ≤5uSec
Operating Travel： 40º/one side pulse traveling 400us
Potentiometer 3 slider/IndirectDrive
Ball bearing MR85x2
Gear Metal
Connector wire length 215mm
Operating Temperature Range -20 ℃ to +60℃
Includes/Requires:
Includes:
1 x servo with servo horns
