Specifications:

Corona 15kg / 0.16sec / 63.6g Metal Gear Large Torque High Voltage Waterproofing Digital Servo DS-560WP




Item No:DS560WP
Dimension:41.8*20*40.8mm(1.65"*0.82"*1.61")
Weight:63.6g
Operating Voltage:6V/7.4V
Operating Current:300mA / 400mA
    Operating speed :0.18sec.60º / 0.16sec.60º
  Stall torque: 13kg.cm/15kg.cm
 Dead band: 3uSec
  Operating range: 40º/one side pulse traveling
Potentiometer High Precision
Ball bearing:MR106/MR126
Gear: Metal
   Wire length:300mm
Operating Temperature Range:-20 to +60
Includes/Requires:
Includes:

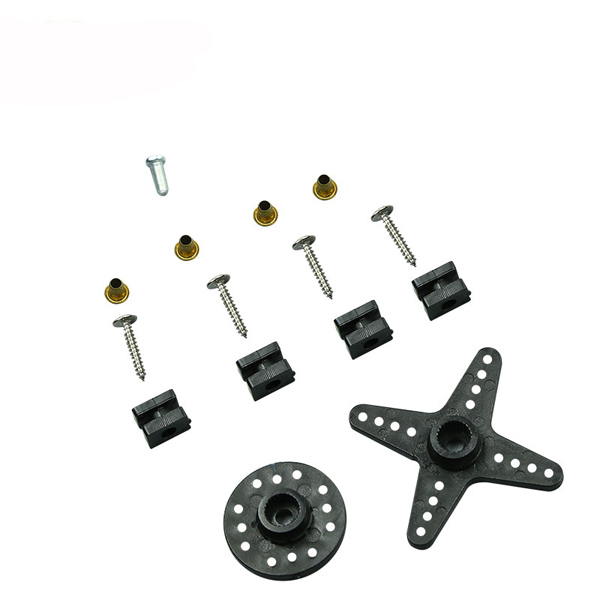

1 x servo with servo horns
