Radio Sets, Receivers, Servos, Gyros and Crystals etc.
   Radios Receivers & Accessories 7 - 9 Ch. Receivers CORONA 2.4Ghz SFHSS 7-Channel Receiver GR7SF (Futaba compatible, W/Stability enhancing Gyro)
SKU:  GR-7SF
Browse CORONA

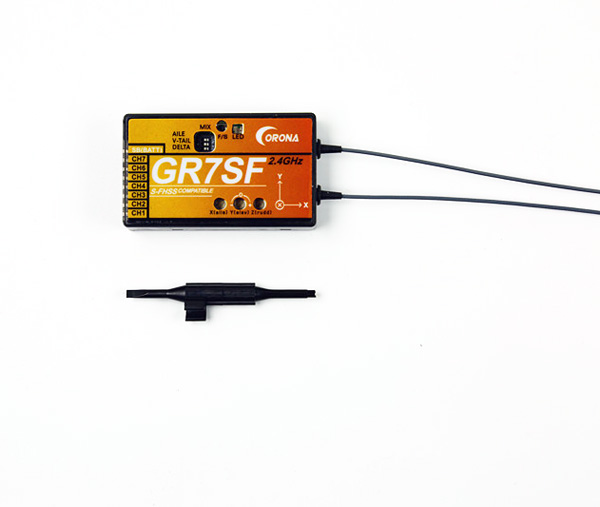

CORONA 2.4Ghz SFHSS 7-Channel Receiver GR7SF (Futaba compatible, W/Stability enhancing Gyro)
Customers rating.
Add To Wish List
Added:2020/10/08
Updated:2020/10/08
Follow Us on:


  Tags: CORONA  2.4Ghz  SFHSS  7-Channel  Receiver  GR7SF  Futaba  compatible  W  Stability  enhancing  Gyro

Features:
Product Description About CORONA NEW GYRO-Embedded  Receiver GR7SF 7CH Compatible with Futaba SFHSS


 Compatibility:

CORONA 2.4GHz S-FHSS Compatible Receiver is designed to use with FUTABA S-FHSS 2.4GHz transmitters, such as T6J,T8J,T10J and T14SG under S-FHSS protocol mode.


Feature:


Mode supply: No mixer, Dual-aileron, V-tail mixer, Delta mixer


Independent simple gyro gain adjustment for Aileron, Elevator and Rudder


S.BUS output support expanding servo channels @the 8th channel


Support gyro function switch on and off in flying by Switching signal of CH5


Bind procedure:


· Turn on the S-FHSS transmitter


· Connect the battery to the receiver while pressing receiver’s F/S button.


· Red LED light on and Green LED off when searching signals, and turn to Green LED light on and Red LED off indicate bind is succeeded.
Specifications:

CORONA 2.4Ghz SFHSS 7-Channel Receiver GR7SF (Futaba compatible, W/Stability enhancing Gyro)


Specifications:



l Voltage Range :3.6~8.5V



l Operating Current:  60mA max



l Operation temperature: -10~70 degC



l Latency: 6.8mS



l Sensitivity: about -96dBm



l Weight: 16g

Includes/Requires:
Includes:
1 x receiver
