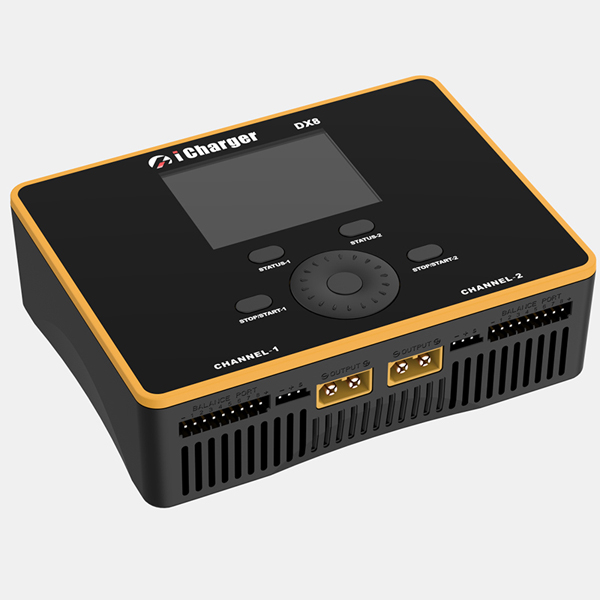

iCharger DX8 Dual Channel 1600W 30A High Power Balance Charger (W/O accessories)
Customers rating.
Add To Wish List
Added:2022/06/16
Updated:2022/06/16
Follow Us on:


  Tags: iCharger  DX8  Dual  Channel  1600W  30A  High  Power  Balance  Charger  W  O  accessories

Features:
The Junsi iCharger DX8 DC Battery Charger is a high power charger that is capable of charging at up to 1600 watts. Using extreme accuracy, this charger features different balance modes keeping your LiPo batteries fresh and performing at their best. The charger shares the accessible and easy-to-understand user interface found in the other popular Junsi iChargers. Charge at peak performance with the Junsi DX8 charger.


Features:


High efficiency synchronous buck boost technology, high power, high current and high efficiency
1600W peak charging power with up to 50A charging and discharging in synchronous mode
Supports up to 8S LiPo/LiLo/Life/LIHV/NiZn and LTO batteries, 25-cell NiMH/NiCd batteries and 15-cell Lead-Acid batteries
Internal temperature sensors allowing control of the fan speed
Thermal shutdown for added protection
The DX8 can store up to 64 battery profiles
Full color 2.4" LCD display provides: current, voltage, electric quantity, power, internal resistance, control status, consumption time, temperature and more
Specifications:

iCharger DX8 Dual Channel 1600W 30A High Power Balance Charger (W/O accessories)


Charge Power (Max) 1600W (max 1100W per channel)
Charge Current Range 0.05-30A
Current Drain (Balancing) 2A
Balance Accuracy 10mV
Internal Discharge (Max) 70W (45W max per channel)
External Discharge (Max) 2100W (max 1050W per channel)
Regenerative Discharge (Max) 1600W (max 1100W per channel)
Discharge Current Range 0.05-30A
LiPo/LiIo/LiFe 1-8S per channel
NiCd/NiMh Cell Count 1-20S per channel
Pb Battery Cell Count 1-12S per channel
Temperature Control (Intel.) Yes
PC Connectivity USB-C
USB Charge Type-C PD 5V/3A, 9V/2A, 12V/1.5A
Input Voltage 9-49V DC
Input Current Limit 65A
Dimensions 129x98x40mm
Weight 440g
Includes/Requires:
Includes:
1 x charger only

* This is the charger only and without accessories.
