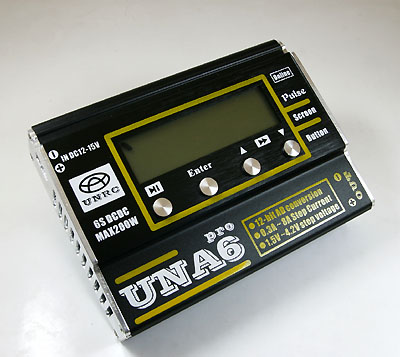

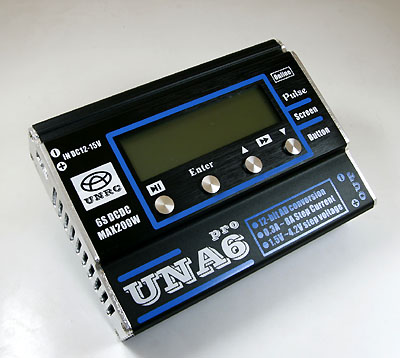

UN-A6 1-6S High Precision Cut-off Voltage Programmable & System Voltage Adjustable Balance Charger

Features:

Featured characters:
1. Cut-off voltage Programmable from 1.5V to 4.2V per cell.
2. Charger system voltage can be re-calibrated.
3. High precision, accuracy up to mV.

The options can be set for Charger UN-A6:
a. cut-off voltage (1.5V to 4.2V)
b. charging current (0.3 to 5A)
c. working mode 1 to 3
d. Fully charge (4.2V/cell) or charging for storage (3.85V/cell)
e. Charging time: when charging time is set, the charging process will complete when charging time is expired or the battery is full charged whichever is earlier.
f. Voltage calibration: this is advanced function, only do it when your digital multimeter resolution is 4 1/2 (accuracy 0.0001V) or higher.

Specifications:

Dimension: 150L x 12W x 4.3H cm
Input: DC12 to 15V
Charge current: 0.3A to 5A
Charging voltage: 2.5V to 4.2V
Balance charging connector type: Align/HiModel battery type
Charging port: 1 x 6S port, 2 x 3S ports, 3 x 2S ports

Includes/Requires:

Includes:
1 x charger
1 x alligator DC cable

Download English manual here .

Customer Reviews:

Average Customer Review: 5 stars

4 customer review(s). [Write a review/question]

d****odriver
STD member

Grade:

Very good charger, despite the dice receipt failure. 6th element unrecognized, have had to replace a photomos on the printed circuit borad and everything is returned in the order. True parallel loading, ability to load multiple batteries at once (of the same number of cell to prevent all problems of short-circuit between elements), display of load currents values. High voltage measurement accuracy of. re-calibrated by myself with a HP3478A to be sure of the final load voltage value.
http://www.desmodriver.blogspot.com/
January 07 2010 Was this review helpful to you?

Yes [ 1 ]

No [ 0 ] [Reply this review]

d****odriver
STD member

Grade:

Très bon chargeur, malgré la panne dés réception. 6ème élément non reconnu, ai dû remplacer un photomos sur le circuit imprimé et tout est rentré dans l'ordre. Le chargeur que je recherchai. Vrai charge en parallèle des éléments, possibilité de charger plusieurs accus à la fois (du même nombre de cellule, pour éviter tous problèmes de court-circuits entre éléments),affichage des valeurs de courants de charges. Grande précision de mesure de tension , que du bon. ré-étalonné par mes soins avec un multi HP3478A pour être sure de la tension finale de charge.
http://www.desmodriver.blogspot.com/

January 07 2010 Was this review helpful to you?

Yes [ 1 ]

No [ 0 ] [Reply this review]

u****aekel
Golden member

Grade:

Sehr gutes Ladegerät, macht eine echte Einzelzellenladung, das heißt, das der max. Balancerstrom gleich dem Ladestrom ist. Somit kann man sehr viel Zeit beim laden sparen. Das Lüftergeräusch ist sehr leise und temperaturabhänig geregelt.

Für das Geld ein echter Geheimtip!!!
October 03 2009 Was this review helpful to you?

Yes [ 1 ]

No [ 0 ] [Reply this review]

y****ek1

Grade:

excellent charger
June 11 2009 Was this review helpful to you?

Yes [ 2 ]

No [ 1 ] [Reply this review]
