   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner LD-Power MT2312 960KV Brushless Motor Set for DJI Phantom 2, Vision+ (2CW, 2CCW) - Black
   Multi-rotors Motors
SKU:  MT2312B
Browse LD-Power

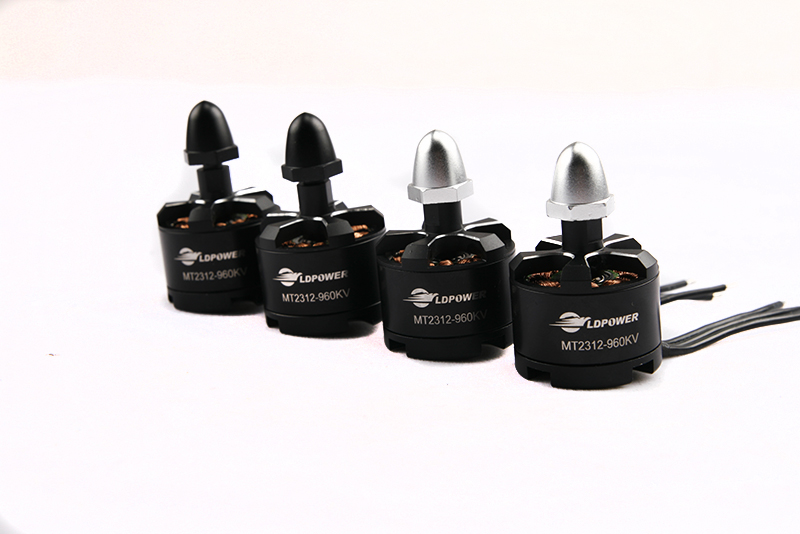

LD-Power MT2312 960KV Brushless Motor Set for DJI Phantom 2, Vision+ (2CW, 2CCW) - Black
Customers rating.
Add To Wish List
Added:2015/03/24
Updated:2015/03/24
Follow Us on:


  Tags: LD-Power MT2312 960KV Brushless Motor Set DJI Phantom 2  Vision+

Features:
Specially designed for DJI Phantom 2, Vision, Vision + etc., also can be used for similar size quadcopters like F450 etc.
Specifications:

LD-Power MT2312 960KV Brushless Motor Set for DJI Phantom 2, Vision+  (2CW, 2CCW) - Black


Model MT2312
Motor  Diameter 29mm
Motor Length 24mm
Stator Diameter 23mm
Stator Length 12mm
Shaft 3mm
Weight 51.5g
Batteries 2-3Cells
No Load Current 0.4A
Mounting hole spacing 16mm/ 19mm


Testing result:

Prop: 9.4 x 4.3inch

ESC: 20A

Throttle: 100%

Working current: 11A

Tesing voltage: 12.4V

Power: 136.4W

Pull: 689g

Efficiency(G/W): 5

Includes/Requires:
Includes:
2 x CW motors W/ prop adaptors
2 x CCW motors W/ prop adaptors
16 x screws
