Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Battery Chargers & Battery Accessories Battery Testers/ Voltage Checkers/ Power analyzer etc. HiModel On-board LED 3-30V Battery Voltage Checker W/JR Connector
SKU:  DGBTVC
Browse HiModel

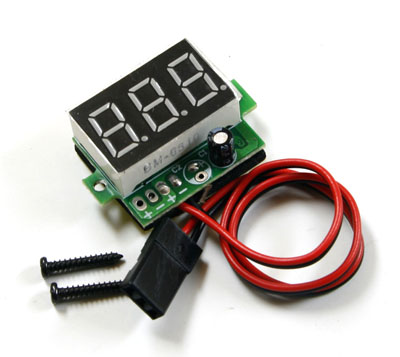

HiModel On-board LED 3-30V Battery Voltage Checker W/JR Connector
Customers rating.
Add To Wish List
Added:2011/03/02
Updated:2012/01/30
Follow Us on:



  Tags: HiModel  On-board  LED  3-30V  Battery  Voltage  Checker  W  JR  Connector

Features:

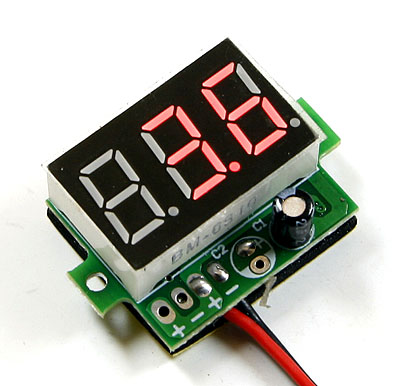

This voltage checker is designed for on-board use, it can be plugged to a spare slot of your receiver, to show your RX battery voltage.
Specifications:
Dimension: 24x20x 12 mm
Weight: 6 grams
Operating Voltage: 3V to 30V per cell
Connector type: JR, compatible with Futaba
Current consumption: 4-8mA
Wire length: 20cm

* This voltage checker only have two wires for input, and it using a JR connector for input, you can not connect it directly to a balance connector of a battery pack.
For the type which can plug directly to the balance connector of a battery pack, refer to MINIBC6S instead.
* Wrong polarity will damage the device, and not covered by warranty.

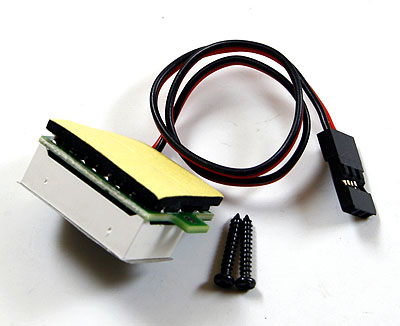

Includes/Requires:
Includes:
1 x voltage checker
1 x double-side adhesive
2 x screws
