Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis HOBBYWING XRotor Micro 12A 1-4S, 4-in-1 Speed Control for Multicopters XRotor-12A Micro
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  XRT12A4IN1
Browse HOBBYWING

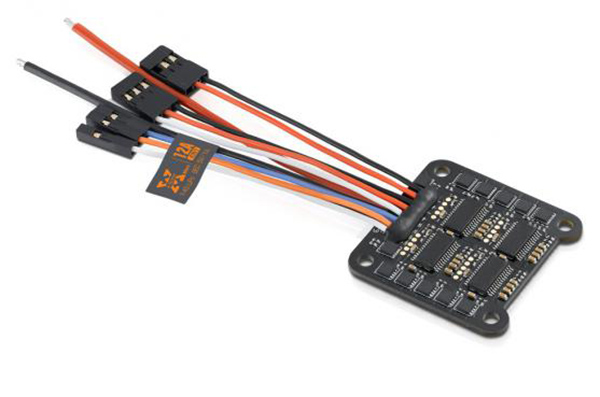

HOBBYWING XRotor Micro 12A 1-4S, 4-in-1 Speed Control for Multicopters XRotor-12A Micro
Customers rating.
Add To Wish List
Added:2017/07/26
Updated:2017/07/26
Follow Us on:


  Tags: HOBBYWING XRotor Micro 12A 1-4S  4-in-1 4IN1 Speed Control for Multicopters XRotor-12A Micro

Features:
Highly Integrated
This XRotor 4IN1 Micro ESC not only includes 4 high-performance 20A ESCs,
1 built-in BEC, but also output ports for powering peripherals like FC, camera,
and a port for FC checking current and voltage in real time. The highly integrated
structure makes the installation and wiring simple and clean.

Direction Reversal via TX

Rotation direction of every motor can be set via transmitter.
This saves the trouble of re-soldering/re-connecting after connected/soldered motors to
the ESC freely and found motor runs in reverse.

Quality Components
The use of high performance 32-bit ARM processors
(with the operating frequency of up to 48MHz),
built-in drive ICs, imported quality MOSFETs,
3-ounce copper and 6 layers of PCBs guarantees less heat,
higher efficiency and rapider response.

Oneshot125, Oneshot42 & Multishot Modes Ready!
This Xrotor 20A 4IN1 Micro ESC not only supports
regular throttle signals (with the frequency of up to 621Hz),
Oneshot125 (125-250μs) high-speed throttle signals
(with the real-time frequency of up to 3.8KHz),
but also Oneshot42 (42-81μs) and Multishot (2-25μs) super
high speed throttle signals. All this makes communication
between FC and ESC more agile, throttle linearity smoother,
and throttle response rapider.


DEO Technology/Active Freewheeling
The DEO (Driving Efficiency Optimization) technology
implemented in the ESC has multiple advantages:
● Active braking. When reducing the throttle amount, the motor will
decelerate very quickly. This feature enables pilots to more easily
perform all maneuvers like sharp turns, altitude changes,
and sudden braking.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature and a more reliable operation.

Motor Lock-up Protection

This XRotor 20A 4IN1 Micro ESC cuts off its output to motor immediately
when it detects the motor shaft is locked up.

Splash-proof
The whole circuit board and all the components on
it have gone through nano-coating treatment;
this makes the XRotor 20A 4in1 Micro ESC splash-proof.
Specifications:

HOBBYWING XRotor Micro 12A 1-4S, 4-in-1 Speed Control for Multicopters XRotor-12A Micro

Specifications

Product Name



XRotor 12A 4IN1 Micro

Xrotor 20A 4IN1 Micro

Product Number



30901041

30901065

Specifications

Cont./Peak Current

12A×4/18A×4

20A×4/25A×4

LiPo Cells

1-4S LiPo

3-4S LiPo

BEC Output

5V,1A

5.3V/12V,3A

Wires & Connectors

Input Wires

Red-18AWG-100mm*1 / Black-18AWG-100mm*1

Black-20AWG-100mm*3 / Black-20AWG-95mm*3 / Black-20AWG-85mm*3

Output Wires

solder tabs

No wires but solder tabs

Input Connectors

No

No

Output Connectors

No

No

(Note: All the wire length above is the original length not the length you see from the outside.)

Features

Firmware

HW Special Program for FPVs

HW Special Program for FPVs

ESC Programming

Supported

Supported

Stick Programming

Transmitter

Transmitter

DEO

Supported

Supported

Throttle Range Calibration

Supported

Supported

Oneshot125 Mode

Supported

Supported

Oneshot42 Mode

Supported

Supported

MultiShot Mode

Supported

Supported

Timing

Not Supported

Not Supported

Motor Rotation

Supported

Supported

Size & Weight

Size

38.1x37.9x5.3mm

54x36x7mm

Weight

8g

24.5g

Applications



150mm FPVs

130-280mm FPVs


Includes/Requires:
Includes:
1 x ESC
