   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis FLY PRO Seires 80A 2-6S, 6A BEC Brushless Speed Control Type FLY-75A-PRO SB
SKU:  FLY75PRO
Other Items of Interest
Browse HiModel

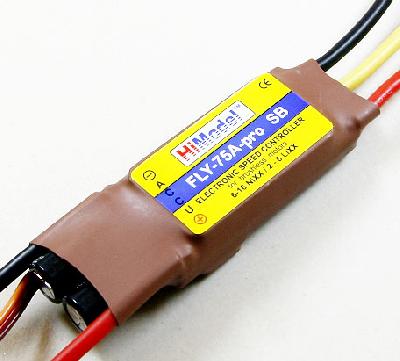

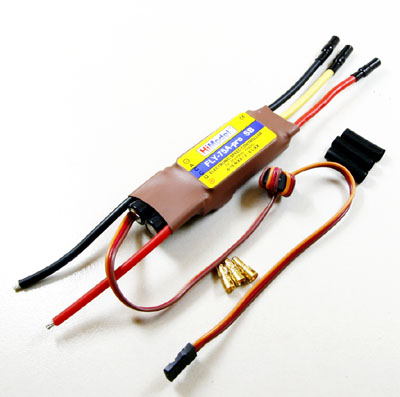

FLY PRO Seires 80A 2-6S, 6A BEC Brushless Speed Control Type FLY-75A-PRO SB
Customers rating.
Manual:
Add To Wish List
Bookmark and Share
Added:2010/10/27
Updated:2012/02/27
Follow Us on:

F4L278627611

PRICE(USD):
    $31.88   In stock
Member PRICE:
    Sign in or Sign up for member price

QTY:


  Tags: FLY  PRO  Seires  80A  2-6S  6A  BEC  Brushless  Speed  Control  Type  FLY-75A-PRO  SB

Features:
● Super fine and smooth touch of speed controlling, first-rate accurate linearity and quick-respond speed of throttle.
● Separate voltage regulator IC for MCU(Micro Controller Unit), high capability of anti-interference to decrease the possibility out of control.
● Low-voltage cut-off protection of battery, blocked rotation protection and throttle signal lose protection, etc. All these functions can prolong the service life of ESC effectively.
● It can be compatible with a programming card(optional component), which has a simple and visual surface so as to change the parameters conveniently at any time anywhere (reference to the manaul for programming card).
● Good and safe performance of power-on. The motor won’t be started no matter which position the throttle stick is on when the battery is connected.
● All the ESCs of the series can be attached to battery of Li-XX or Fe. The protection voltage becomes more accurate.
● Automatically adjustment of Timing recommended for outrunner and inrunner motors.
● Direction of motor rotation can be changed by transmitter or programming card.
● BEC has adopted the most advanced designing of Switch mode mastered by the main-controlling chip, combining of FET of extremely low resistor against high frequency, current limit protection, high efficiency of chip up to 93%, which can meet the demand of digital servo of high torque or simulating servo fully.
Specifications:
· Weight: 65 g
· Size: 70 x26 x17 mm
· Constant Current: 80A
· BEC: Switch mode 5.5V/ 6A
· PWM: 8 KHz
· Input: 2 to 6 Li-Po/ 6-16 NiCd/NiMh


Includes/Requires:
Includes:
1 x ESC

Customers who bought the above may also need
PictureStock NumberManufacturer & Product DescriptionPriceQTYSelectStock Status
Click for the detail!FLYPROPCPrograme Card for FLY PRO Series Speed Controllers$5.35In stock
Customer Reviews:
Average Customer Review: 5 stars   2 customer review(s).   [Write a review/question]

R****chnics
Grade:
For High RPM situations these controllers need to be put in the Low timing setting otherwise the current will be to high as the ESC loses its timing.
If you use the programming card to select the low timing setting than it works perfect.
September 26 2011     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]


R****360
Grade:
Burnt out on first flight using 6S, 500 Heli, will not buy again!!!
December 18 2010     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]
