   FPV/ Aerial Photography Gimbal/ Gimbal Controller etc. Tarot T4-3D 3-Axis Stabilized Brushless Gimbal For FPV Gopro Hero 3/3+/4 TL3D01
SKU:  TL3D01
Browse DJI

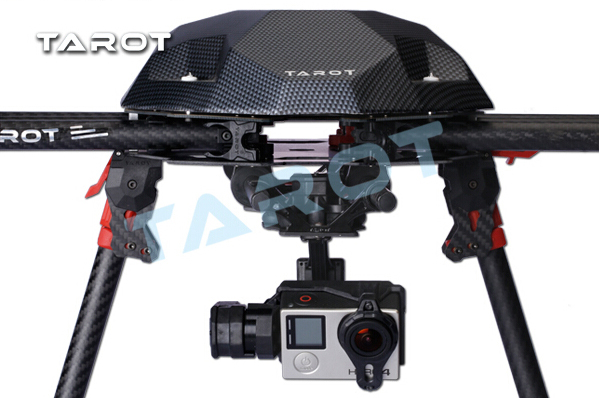

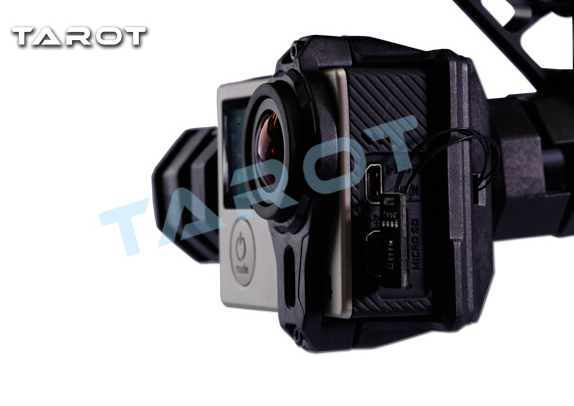

Tarot T4-3D 3-Axis Stabilized Brushless Gimbal For FPV Gopro Hero 3/3+/4 TL3D01
Customers rating.
Add To Wish List
Added:2015/09/12
Updated:2015/11/17
Follow Us on:


  Tags: Tarot T4-3D 3-Axis Stabilized Brushless Gimbal For FPV Gopro Hero 3/3+/4 TL3D01

Features:
- Tarot T4-3D three-axis stabilized platform is designed for customized camera GoPro HERO3/HERO4 and the same size and weight ones, integrated TAROT series  all the high-end technology of PTZ . The combination of aluminum and engineering plastics structure presents lightweight and strongest stability. Even in extremely harsh environment, it can also locked the camera accurately  to maintain high stability and output the ultimate and exquisite experience, as well as the industry-grade picture. It is the best choice for professional film and television photography and aerial.
- Tarot T4-3D three-axis stabilized platform applies the advanced control algorithm, the built-in independent IMU can control precisely platform status, also integrated platform and servo drive module. Supporting point following (PF) and first person (FPV). That's two working modes. All the power supply and signal embedded in the platform structure. The rotation speed of the shaft is controlled by the rotation speed of the rod, and the greater the amount of the rod is, the faster the rotation speed is.
Specifications:
- Support the computer operation interface setting
- Point following mode (PF)
- First person view (FPV)
- Built in independent IMU module
- TAROT special driving module for PTZ
- AV output interface
- Wide range voltage input
- Support receiver /DSM receiver and /S-Bus receiver


Peripheral equipment:
- Camera type: camera HERO3/HERO4 GOPRO and camera with same size and weight
- Input power: 2S~6S LiPo battery


Mechanical / electrical properties:
- Angle precision achieving: +-0.02°


Maximum controllable speed:
- Pitch direction (TILT): 200 /s


Controllable rotation range:
- Pitch direction (TILT):-120 to +15
- Working current: 30mA (@25V) 50mA (@12V)
- Blocking current: 350mA (@25V) 700mA (@12V)
- Working temperature: -20 ~50 degree Celsius
- Weight: 178g
- Size: 99mm x 88.5mm x 105.6mm


Adjustable  software installation requirements:
XP Windows; VISTA Windows; Windows 7; Windows 8 (32 or 64 bit)
Includes/Requires:
Includes:

 Three-axis Brushless Gimbal × 1
 PTZ control module × 1
 Gimbal master with the tripod head body connecting line x 1
 5V output, receiver and video line x 1
 USB module x 1
 The flight control cable * 1
 Packing box x 1
