   FPV/ Aerial Photography Video TX/RX & Accy. Super Mini 7.3g 5.8G 32Ch 200mW A/V Transmitter Module (TX) TS5823|RP-SMA, jack
SKU:  TS5823

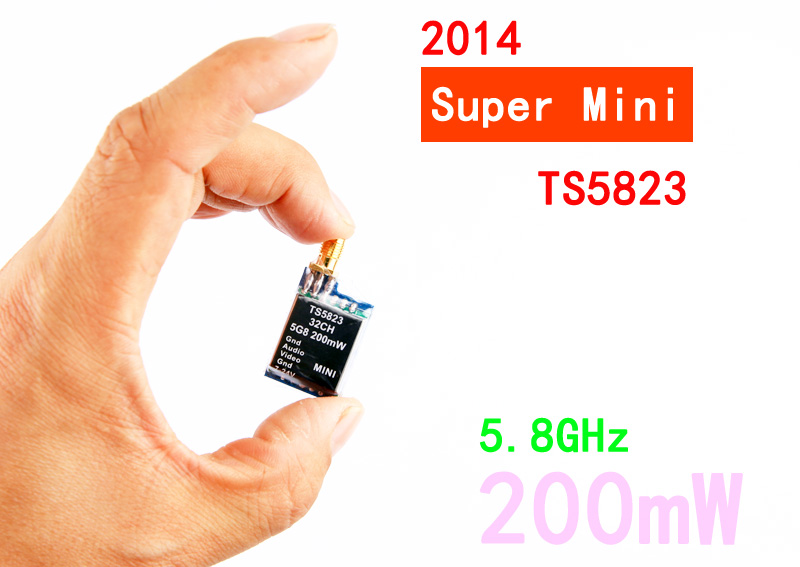

Super Mini 7.3g 5.8G 32Ch 200mW A/V Transmitter Module (TX) TS5823|RP-SMA, jack
Customers rating.
Add To Wish List
Added:2014/04/19
Updated:2014/06/24
Follow Us on:


  Tags: video recording system  FPV mini super light FPV AV tansmitter

Features:

Special features:
- Super mini, super light, specially designed for mini quadcopter/ multicopters.

Specifications:

Super Mini 7.3g 5.8G 32Ch 200mW A/V Transmitter Module (TX)  TS5823|RP-SMA, jack

Transmitting unit weight: 7.3g (excluding antenna)
video format supported: NTSC/PAL
Working frequency: 5645-5945Mhz
Power input: 7-24V
Transmitting current: 190mA @ 12V
Video band width: 8M
Audio coding: 6.5M
Dimension: 30*20*8mm (excluding antenna)
Antenna connection: RP-SMA  jack (TX module side)   Refer to here for connector type diagram
Connector pin spacing: 2mm (approx.)


*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.





Includes/Requires:

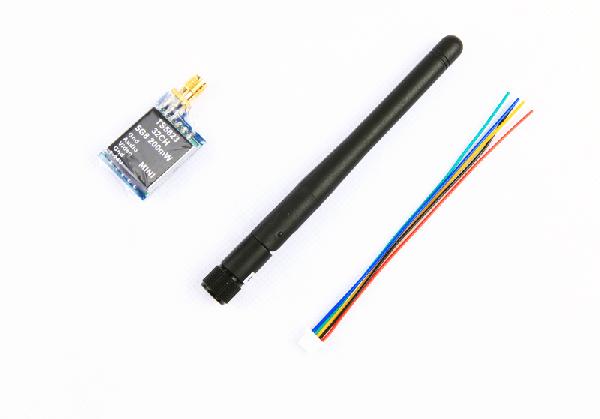

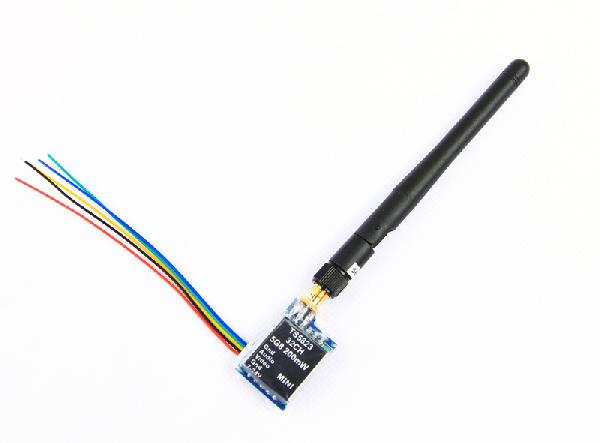

Includes:
1 x transmitting unit (TX)
1 x TX antenna (2db)
1 x special wire
* No instruction manual supplied with this product.

Requires:
1 x receiving unit (RX)
