   FPV/ Aerial Photography Cameras/Video Recorder/Capture Foxeer 1/3" Sony 600TVL CCD HS1177 Mini FPV Camera 2.8mm Lens - NTSC
SKU:  HS1177-N
Foxeer 1/3" Sony 600TVL CCD HS1177 Mini FPV Camera 2.8mm Lens - NTSC
Customers rating.
Add To Wish List
Added:2016/07/26
Updated:2016/07/26
Follow Us on:


  Tags: Foxeer 1/3" Sony 600TVL CCD HS1177 Mini FPV Camera 2.8mm Lens

Features:


Specifications:

Foxeer 1/3" Sony 600TVL CCD HS1177 Mini FPV Camera 2.8mm Lens - NTSC

Model: HS1177CCD:
1/3” Sony SUPER HAD II CCD
Pixel: NTSC 768(H)×494(V)
TV System: NTSC
Resolution: 650TVL(b/w), 600tvl(color)
Synchronization: internal synchronize
Shutter Speed (CCD IRIS): PAL: 1/60~1/100000 sec
Noise: > 60 (AGC OFF)
Video Out: 75ohm, synchronize
Min. Illumination: 0.01Lux
Auto Gain: Off/Low/Mid/High
Back Light Compensation: (BLC) Off /Back light compensation/ Strong light suppression
Private shading: (PRIVACY) 1~8 private shading area
Motion Detection: (MD) On/ Off (Multi level sensitivity settable)
Auto White Balance: Manual / Auto / Auto track
Mirror: Horizontal Mirror optional
Negative: Positive / Negative optional
Color to B&W: Auto
DNR: 2DNR
WDR: D-WDR
Day / Night Shift: Auto/ Color/ B&W
Menu (OSD): English menu
White Dot Repair: Support
Image Adjustment: Support
Camera Title: Support
Power Requirement: DC5V~22V
Working Temperature: -10 C ~ 50 C
Working Humidity: 20~80%
Storage Temperature; -40 C ~ 60 C
Storage Humidity: 20~95%
Dimensions(mm): 25X25(W*L)
Power Consumption: 70mA
Includes/Requires:

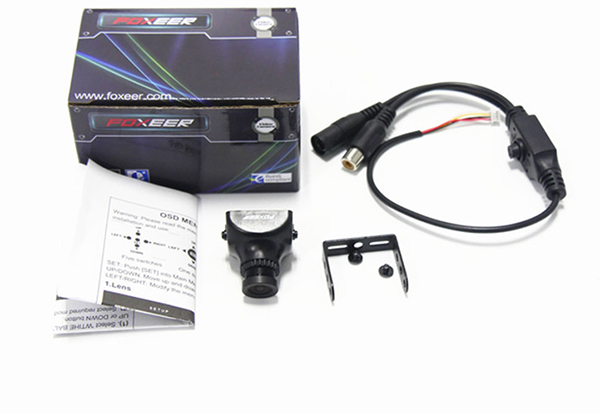

Includes:
1X Foxeer camera
1x mounting bracket with hardware
1 x camera cable with male servo connector
1 x OSD joystick
