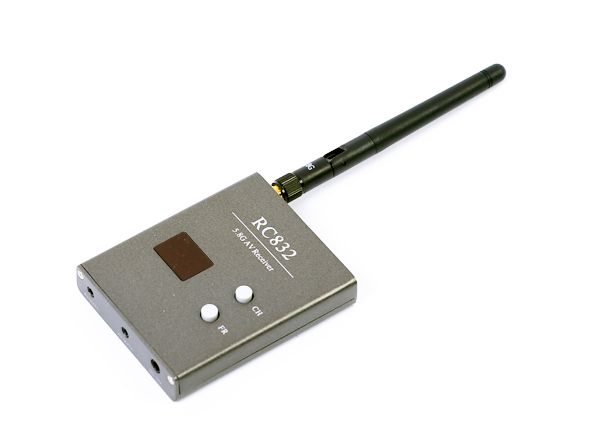

   FPV/ Aerial Photography Video TX/RX & Accy. FPV 5.8G A/V Receiver (RX) W/ LED Channel Display RC832 - 40CH Edition | RP-SMA, jack
SKU:  RC-832
Other Items of Interest
FPV 5.8G A/V Receiver (RX) W/ LED Channel Display RC832 - 40CH Edition | RP-SMA, jack
Customers rating.
Add To Wish List
Added:2013/06/26
Updated:2019/08/26
Follow Us on:


  Tags: video recording system  FPV  32 channels

Features:
THIS IS THE NEW 40-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM.

Features:

40 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compactable;
• Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;
Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;
• Power off memory: Replay the very last frequency band and channel
• Independent video and audio signal outputs



Specifications:

FPV 5.8G A/V Receiver (RX)  W/ LED Channel Display RC832 - 40CH Edition | RP-SMA

Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack (module side) See connector type diagram
Power input: 12V
Working current: 200mA max
Antenna impedance: 50Ω
Antenna gain: 2db
Video impedance: 75Ω
Video format: NTSC/PAL auto
 Dimension:  80x 65 x15mm
Weight: 85g




Includes/Requires:
Includes:
1 x receiver (RX)
1 x antennas (2db)
1 x basic wires set

Requires:
1 x transmitter (TX)
