   FPV/ Aerial Photography Gimbal/ Gimbal Controller etc. Alexmos 32bit 3-axis/ 3-axle Large Current Brushless Gimbal Controller - Integrated Version, firmware upgradable | 32-bit
SKU:  BGC3H-32
Alexmos 32bit 3-axis/ 3-axle Large Current Brushless Gimbal Controller - Integrated Version, firmware upgradable | 32-bit
Customers rating.
Add To Wish List
Added:2014/06/16
Updated:2014/06/17
Follow Us on:


  Tags: Alexmos brushless gimbal  aerial photography  3-axis gimbal control  3-axle gimbal control 32-bit 32 bit

Features:

Special features:

- This is the 32-bit version.
- This is the new 3 axis integrated version gimbal controller, utilizing larger current MOS chip, can drive up to 90 class big motors.
- Using larger current MOS chip replacing L6234D.
- Peak current 10A ( compare to L6234D 5A)
- Can work under 5A continuously ( heat sink is highly recommended when exceeding 3A)
- Official version, support official version firmwares.

For more information and trouble shooting, please refer to developer's official website: http://www.basecamelectronics.com/

Special hint:  Official version (licensed version) gimbal controllers now usually come without firmware, customers need to download and flash the official version firmware before use.
Specifications:

Alexmos 32bit 3-axis/ 3-axle Large Current Brushless Gimbal Controller - Integrated Version, firmware upgradable | 32-bit

Axis number: 3
Driving chip type: MOS
Peak working current: 10A
Continous working current: 5A ( Heat sink is highly recommended when working at 5A or above)
Power supply: 2-4S (3S is recommended)
Firmware:  support
SimpleBGC official version firmwares & upgradeable

Main board size: 5 x 5 cm
Fixing hole spacing: 4.5x 4.5cm
Supported motor class: Suggested to use motors not exceeding 8108 size and internal resistance no lower than 7Ω.

Sensors Installation hints:
Blue sensor to be installed on multicopter frame, and black sensor on gimbal.




Note about brushless gimbals & Controllers:

Brushless gimbals and controllers are very new to the market and it is an emerging technology. You will need some patience and effort to get it to work as seen on youtube etc.. THIS IS NOT A PLUG AND PLAY DEVICE!
You will need some understanding of Microsoft windows drivers, software settings and tuning the gimbal software to your liking and to suit your multirotor.
Getting things to work the way it’s supposed to will be YOUR RESPONSIBILITY. Please understand this before you purchase any Brushless Gimbal Related Item.

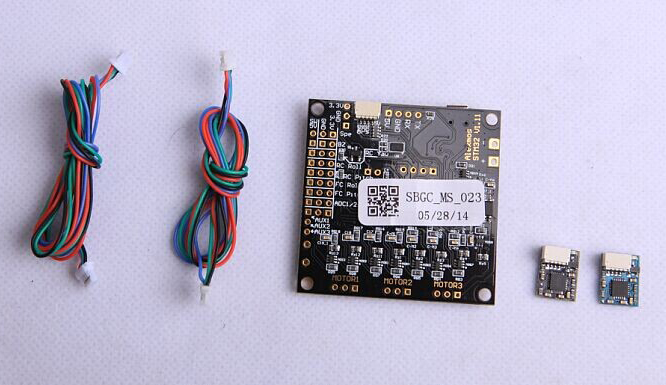

Includes/Requires:
Includes:

1 x Gimbal Controller main board (32-bit)
2 x sensors
2 x sensor wires
