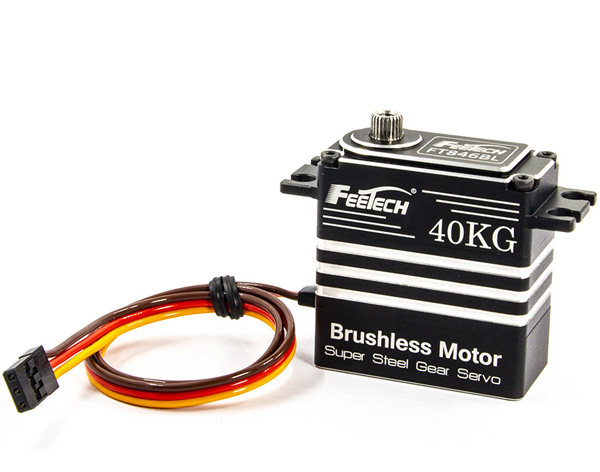

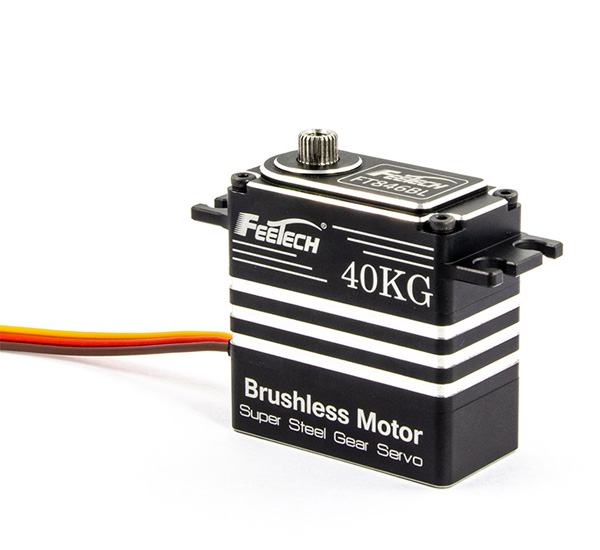

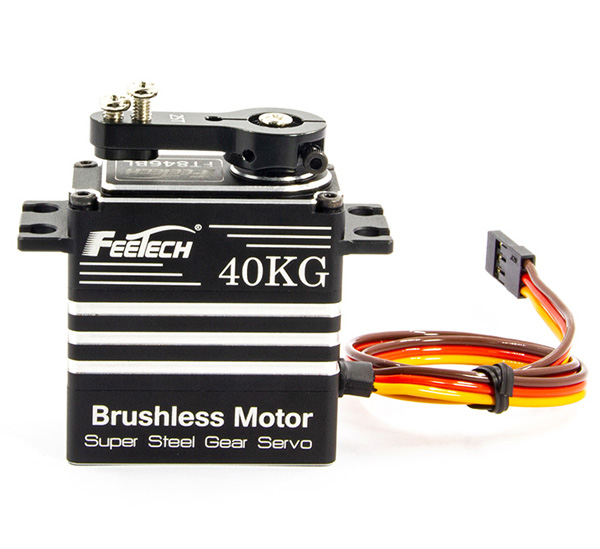

FeeTech FT846BL 40kg All Metal PWM Anti-splashing Digital Servo (for RC cars)
Customers rating.
Add To Wish List
Added:2021/05/05
Updated:2021/05/05
Follow Us on:


  Tags: FeeTech  FT846BL  40kg  All  Metal  PWM  Anti-splashing  Digital  Servo  for  RC  cars

Features:
Features:


- Control model is PWM


- Control system type: Digital comparator


- Operating angle: 180°


- Pulse width range: 500~2500μsec


- Electronic protection: locked rotor for 3 seconds (after the steering gear is locked, the output torque will exceed the overload torque and continue to protect the torque after 3 seconds, the overload torque and protection time can be modified)
Specifications:

FeeTech FT846BL 40kg All Metal PWM Anti-splashing Digital Servo (for RC cars)


Brand: FEETECH


Item Name: FT846BL Servo


Output Shaft: 25T/5.9mm


Gear Material: Steel


Bearing Type: Ball Bearing


Institutional Limit Angle: Unlimited


Size: 40*20*43mm


Weight: 91.5g


Operating Voltage: 6V~7.4V


No-load Speed: 0.185sec/60°~0.151sec/60°


No-load Current: 270mA~300mA


Stall Torque: 32.5kg.cm-40kg.cm


Stall Current: 3.5A~4.4A


Specified Load: 10.5Kg.cm~13.5Kg.cm


Rated Current: 1100mA~1450mA


Voltage Range: 4V~8.4V


Kt Constant: 9Kg.cm/A
Includes/Requires:

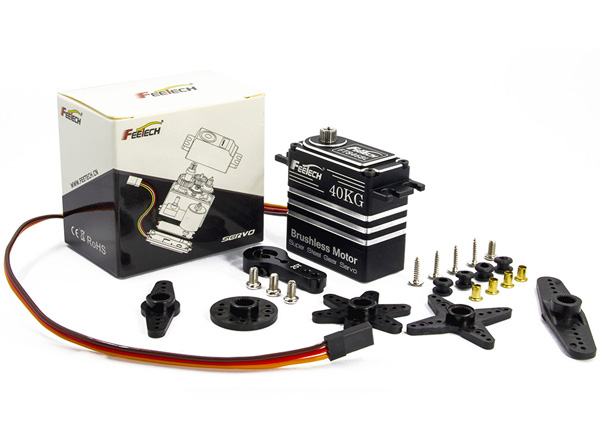

Includes:
1 x servo
1 x accessory bag
