SKU:  FT825BL

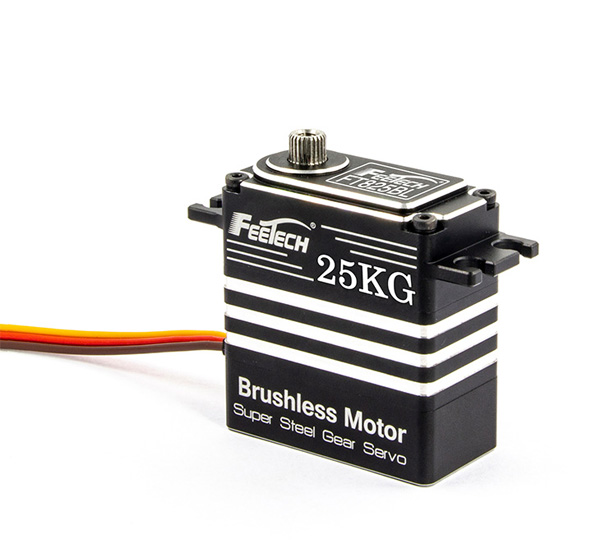

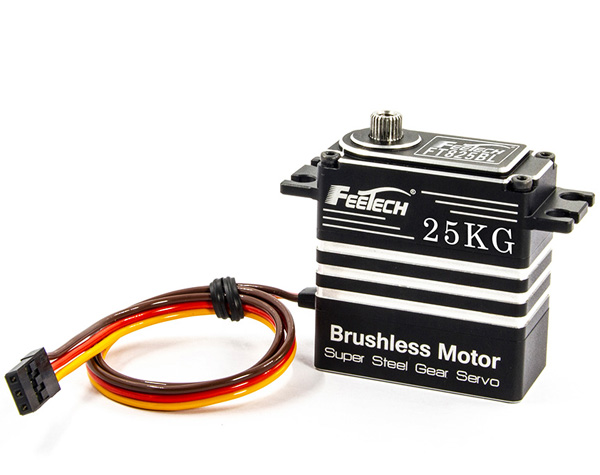

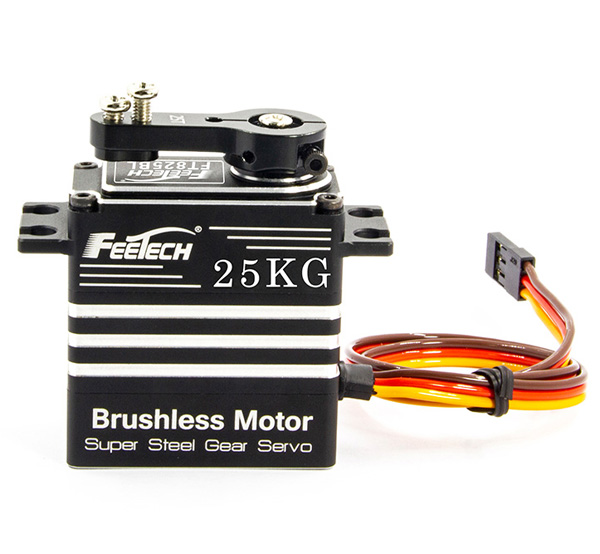

FeeTech FT825BL 25kg All Metal PWM Anti-splashing Digital Servo (for RC cars)
Customers rating.
Add To Wish List
Added:2021/05/05
Updated:2021/05/05
Follow Us on:


  Tags: FeeTech  FT825BL  25kg  All  Metal  PWM  Anti-splashing  Digital  Servo  for  RC  cars

Features:
Features:

- Control model is PWM
- Control system type: Digital comparator
- Operating angle: 180°
- Pulse width range: 500~2500μsec
- Electronic protection: locked rotor for 3 seconds (after the steering gear is locked, the output torque will exceed the overload torque and continue to protect the torque after 3 seconds, the overload torque and protection time can be modified)
Specifications:

FeeTech FT825BL 25kg All Metal PWM Anti-splashing Digital Servo (for RC cars)


Brand: FEETECH
Model: FT825BL
Storage Temperature Range: -30ºC~80ºC
Operating Temperature Range: -20ºC~60ºC
Size: A:54.45mm B:20mm C: 38.95mm
Weight: 84± 1g
Gear type: Steel
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline:  25T/5.9mm
Gear Ratio: 1/188
Case: Alumi num
Connector wire: 30CM
Motor: Brushless Motor
Operating Voltage Range: 6V-7.4V
Idle current (atstopped): 6MA@7.4V
No load speed: 0.119sec/60°@7.4V
Runnig current(at no load) : 250mA@7.4V
Peak stall torque: 25kg.cm@7.4V
Rated torque: 8.3kg.cm@7.4V
Stall current: 4.2A@7.4V
Command si gnal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500~2500 μ sec
Stop position: 1500 μ sec
Running degree: 180°(at 500→2500μsec)
Dead band width:  ≤4 μ sec
Rotating direction: Counterclockwi se (1500→2000 μ sec)
Includes/Requires:

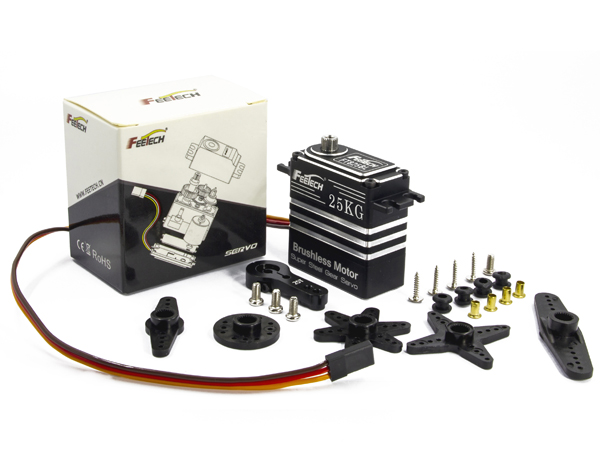

Includes:
1 x servo
1 x accessory bag
