   Radios Servos & Accessories Digital Servo & Accessories FeeTech FT5825M 25kg Metal Gear Digital Servo
SKU:  FT5825M

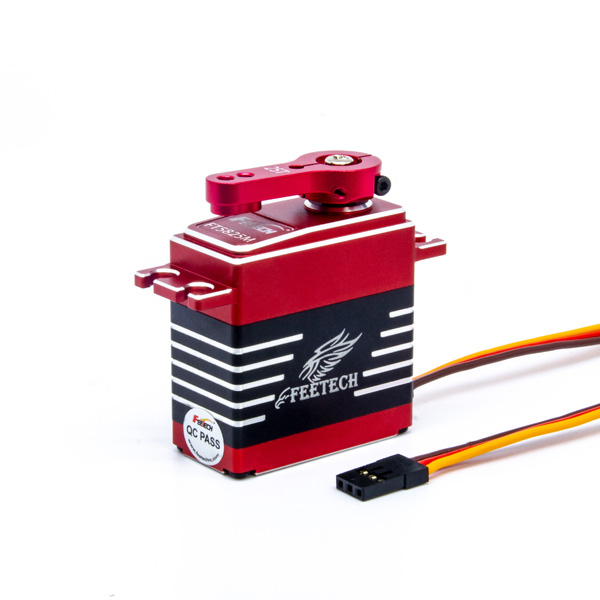

FeeTech FT5825M 25kg Metal Gear Digital Servo
Customers rating.
Add To Wish List
Added:2021/05/05
Updated:2021/05/05
Follow Us on:


  Tags: FeeTech  FT5825M  25kg  Metal  Gear  Digital  Servo

Specifications:

FeeTech FT5825M 25kg Metal Gear Digital Servo


Model:FT5825M
Storage Temperature Range:-30℃~80℃
Operating Temperature Range:-20℃~60℃
Size:A:40mm B:20mm C: 43mm
Weight:74± 1g

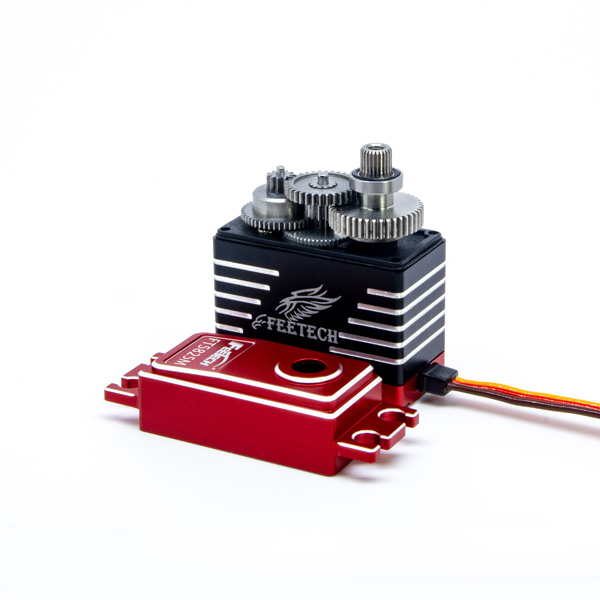

Gear type:Steel
Limit angle:NO limit
Bearing:Ball bearings
Horn gear spline:25T/5.9mm
Case:PA+ Aluminum
Connector wire:30CM
Motor:Core Motor
Operating Voltage Range:6-7.4V
Idle current (atstopped):6MA@7.4V
No load speed:0.151sec/60°@7.4V
Runnig current(at no load):250mA@7.4V
Peak stall torque:25kg.cm@7.4V
Rated torque:8.3kg.cm@7.4V
Stall current:3.5A@7.4V
Command si gnal:Pulse width modification
Amplifier type:Digital comparator
Pulse width range:500~2500 μ sec
Stop position:1500 μ sec
Running degree:180°(at 500→2500μsec)
Dead band width:≤4 μ sec
Rotating direction Counter clockwise (1500→2000 μ sec)

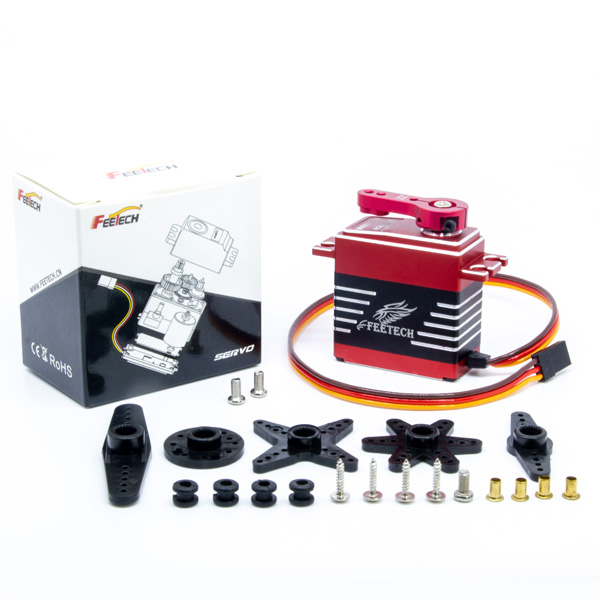

FEETECH 25kg.cm 180 Degree Iron Core Servo x 1
Includes/Requires:
Includes:
1 x servo
1 x accessory bag
