SKU:  FT5330M

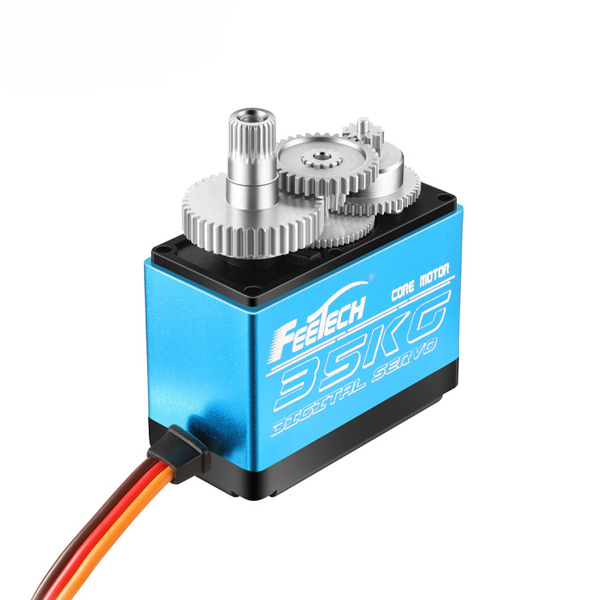

FeeTech FT5330M 7.4V 35.5kg 180 Degree Metal Gear Digital Servo FT5330M
Customers rating.
Add To Wish List
Added:2021/05/05
Updated:2021/05/05
Follow Us on:


  Tags: FeeTech  FT5330M  7.4V  35.5kg  180  Degree  Metal  Gear  Digital  Servo  FT5330M

Specifications:

FeeTech FT5330M 7.4V 35.5kg 180 Degree Metal Gear Digital Servo FT5330M


Electrical Specification
Operating Vol tage:6V, 7. 4V
No Load Speed:0.238sec/60°(42PPM),0.192sec/60°(52RPM)
Runnine Current ( no load):1 50mA, 180mA
Stall Torque (at locked):28.8kg. cm 400. 65oz. in, 35. 5kg. cm 493.86oz. in
Stall Current (at locked):3.2A, 3.9A
Idle Current (at stopped):6mA
Input Vol tage :4V-8.4V
Rated Torgue:9.5kg. cm, 11.8kg. cm
Rated Current:1000mA, 1200mA
KT: 10kg. cm/A


Mechanical Specification:
Size:55*20*43
Weight:67g
Case material:Pa+Aluminum
Gear material:Steel
Bearing type:Ball bearings
Angle Sansor:Carbon-Film Potentiometer
Angle:180 degrees
Life:1000000Cycles Min


Connector and Cable:
Type:JR
Material:PVC
Length:30cm
Pin Definition:1-Signal; 2-Vcc; 3-GND
Horn Type:25T/5.9mm
Gear Ratio:1/356
Back Lash:≦0.5 degree
Rocker phantom:0 degree
Rocker screw:M3*6
Motor:Core Motor
Includes/Requires:

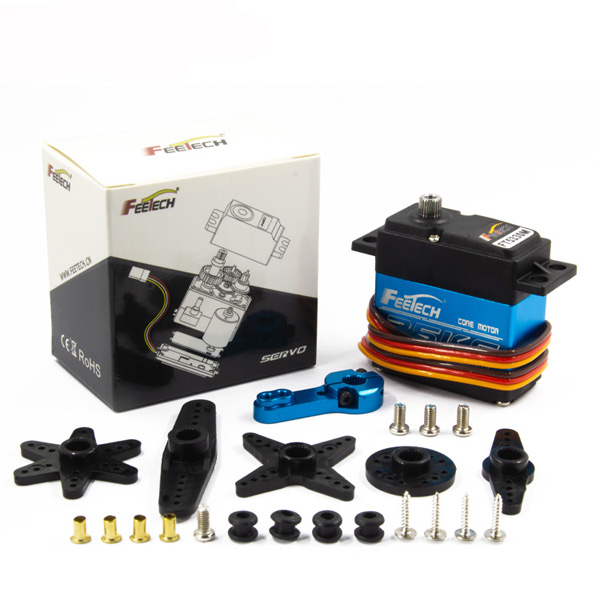

Includes:
1 x servo
1 x accessory bag
