SKU:  FT5325

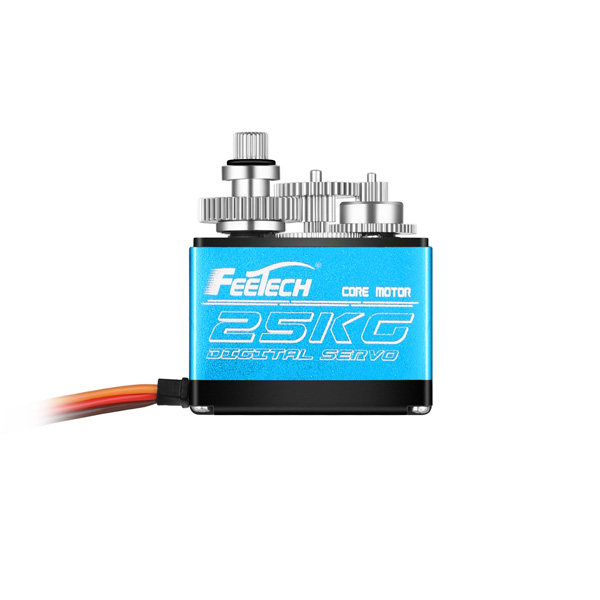

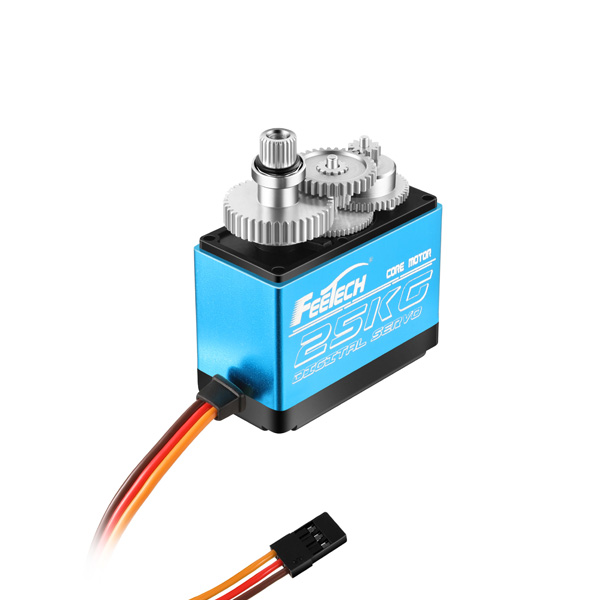

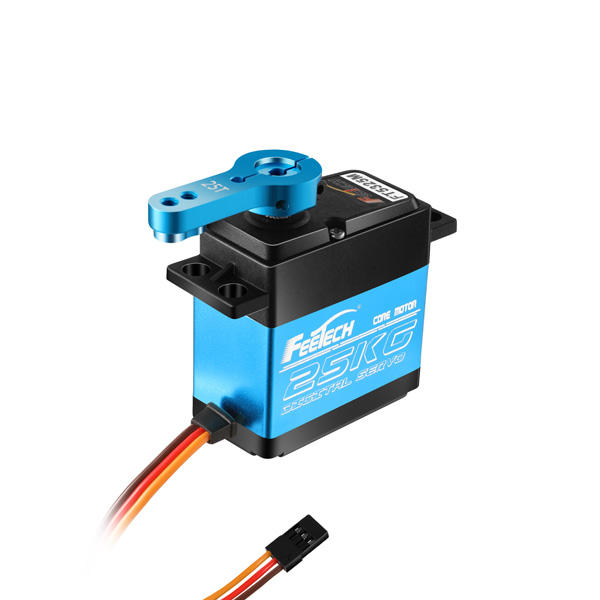

FeeTech 7.4V 25kg Metal Gear 180 degree Digital Servo FT5325M
Customers rating.
Add To Wish List
Added:2020/10/08
Updated:2020/10/08
Follow Us on:


  Tags: FeeTech  7.4V  25kg  Metal  Gear  180  degree  Digital  Servo  FT5325M

Specifications:

FeeTech 7.4V 25kg Metal Gear 180 degree Digital Servo FT5325M


型 号 Model:

FT5325M

产品名称 Product Name:

7.4V 25kg.cm数码180度铝中壳舵机/7.4V 25kg.cm digital 180 degree aluminum mid-shell servo

存储温度 Storage Temperature Range-30℃~80℃
运行温度 Operating Temperature Range:-20℃~60℃

尺寸 Size:

A:55mm B:20mm C:43mm

重量 Weight:

67土1g

齿轮类型 Gear type:

Steel tooth

机构极限角度 Limit angle:

NO limit

轴承 Bearing:Ball bearings
出力轴 Horn gear spline:

25T/5.9mm

摆臂 Horn type:Plastic,POM
外壳 Case:PA+A lumi num
舵机线 Connector wire:30CM
马达 Motor:

Core Motor

工作电压Operating Voltage Range:

6V-7.4V

静态电流Idle current (at stopped) .6MA@7.4V

空载速度 No load speed:

0. 151sec/60°@7.4V

空载电流 Runnig current(at no load) :120mA@7.4V

堵转扭矩 Peak stall torque:

25kg.cm@7.4V

额定扭矩 Rated torque:

8.3kg.cm@7.4V

堵转电流 Stall current:3.5A@7.4V
控制信号Command si gnalPulse width modification
放大器类型Amplifier typeDigitalcompara tor
脉冲宽度范围Pulse width range900~2100usec
中立位置Stop position1500 sec
旋转角度Running degree

180° Continuous Rotation

死区宽度Dead band width+/-25 μsec

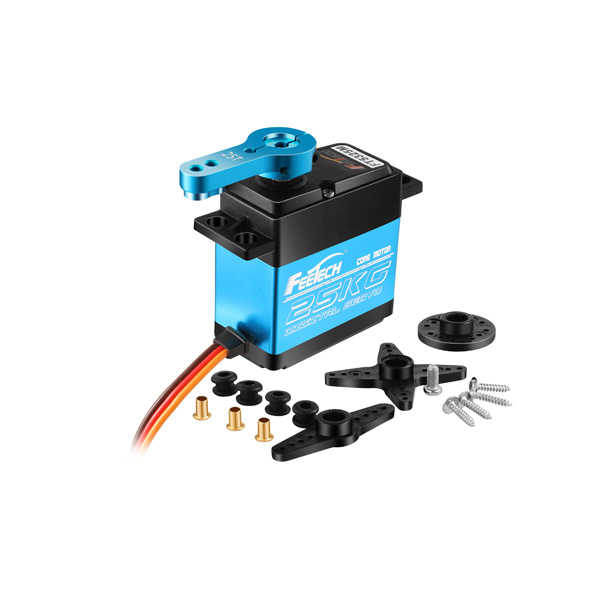

Includes/Requires:
Includes:
1 x servo
1 x accessory bag
