TAROT ZYX-OSD Video Superimposite Overlay System for Multicopter Drone TL300C
Customers rating.
Add To Wish List
Added:2016/04/07
Updated:2016/04/07
Follow Us on:


  Tags: TAROT ZYX-OSD Video Superimposite Overlay System for Multicopter Drone TL300C

Features:

ZYX-OSD TL300C can overlay the basic flight information of the aircraft to the video, such as altitude, speed, attitude angle, battery voltage, the distance between aircraft and return point, control mode, return to home status and etc.
ZYX-OSD also has data record function. It can save the flight data to MINI-SD card, with it, you can do the data analysis, like the black box function when need. When you use it for the first time, ensure you format the MINI-SD card to FAT32 format.

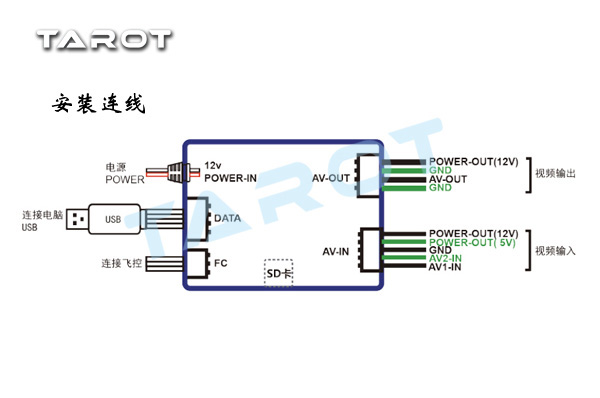

ZYX-OSD has two way video input function, you can change the video input sources by the radio. The PAL and NTSC video format can be identified automatically.


Note: ZYX-OSD should work with ZYX-M flight controller system.


Specifications:

TAROT ZYX-OSD Video Superimposite Overlay System for Multicopter Drone - TL300C

Input voltage and current: 12V (80mA) (When it does not power the other equipment)
Output voltage and current: 12V (1.5A) and 5V (2.0A)

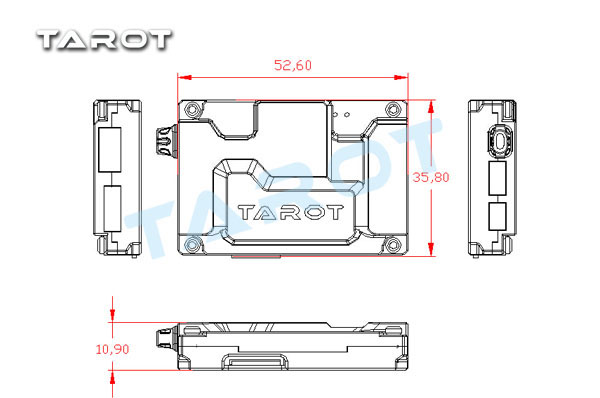

Dimension: 53mm x 36mm x 10mm
Weight: 18g
Video Format: PAL/NTSC (Automatic Identification)
Includes/Requires:
Includes:
1 x Tarot ZYX-OSD
