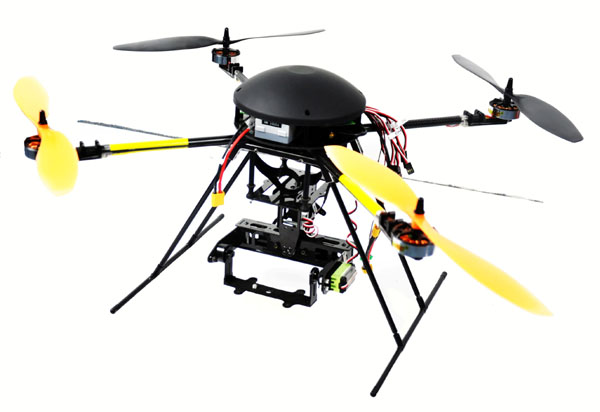

LOTUSRC T580P+ (with GPS) Quadcopter (Folding design) - GPS Edition RTF

Features
T580P+ (with GPS) is high-end model developed based on the T580P+ platform, it is targeted for professional aerial photo and video usage.
1) Safe: Flight control system running in parallel via Remote controller and ground station to avoid possibility of accident. Also included low voltage alarm and lost signal auto return home function.
2) Efficient: 14” Slow Fly propellers + disc brushless motor, maximum efficient unto 12.2g/W.
3) Stable: 6 DOF, ulitising industrial grade high impact resistance and low drift MEMS sensors.
4) Simple: Pre-configured with remote controller, no setup required
5) Easy: Quick model setup, with two axis stabilized gimbals.
6) Operating temperature:-10～+60℃。

Functions and capabilities:
1) Auto take off (Ground station control)
2) Altitude hold (via remote control)
3) Position hold (Remote or ground station control)
4) Way point flight (ground station control)
5) Auto return home and auto landing (Remote or ground station control)
Camera Gimbal can be installed under the frame which allowed quick removal from the frame. The tilt and roll angle can be controlled via remote control. It uses the suspension mounting system which provides effective elimination of high and low frequency vibration.

Specifications

Item	Description	Specifications	Qty	Unit
1	Body/cover	Compounded industrial Plastic + 3K Carbon	1	Set
2	Arm	3K Carbon	4	PC
3	Skid	Fibreglass/plastic/strengthen aluminum	1	Set
4	Motor	C3410 KV420 High efficiency out runner brushless	4	PC
5	Propellers	1445 Compounded industrial Plastic	2	Pairs
6	Camera Gimbal (Optional, not included）	Carbon fibre, dual axis	1	Set
7	Gimbal Servo (optional, not included)	High speed digital metal gear	2	PC
8	Brushless ESC	2-6S 18A high speed ESC	1	Set
9	Flight control system	GPS+INS Auto stabilize system	1	Set
10	Radio system	WFLY 9-ch 2.4G radio WFT09II (customized version)	1	set

Model Dimension	634 × 634 × 296	Mm
Maximum Dimension	960 × 960 × 296	Mm
Folded Dimension	D160 × 520	Mm
Motor distance	Motor shaft to motor shaft (opposite)	600mm
Propellers	1447 CW/CCW customized	14inch
Battery	LiPo 5S 10000mAh (weight 890g)	Standard 1P
Model weight	Excludes Battery, Receiver, payload	1100g
Take off weight	5S 10000mAh Lipo、RX、Camera Gimbal	2300g
Payload	GOPRO/DV/light SLR	≤700g
Max. Trust	With 1P standard Lipo	8800g
Max. Payload	With 1P standard Lipo	≤1000g
Max. Take off weight	With 1P standard Lipo	3000g
Flight distance	Signal coverage zone（300M radius or 2KM）	Out of signal coverage zone, no flight data, duration will depends on Lipo used
Flight time 1	3S 4300mAh 1P Lipo, RX	10 Minutes
Flight time 2	4S 10000mAh 1P Lipo, RX	15~20 Minutes
Flight time 3	5S 10000mAh 1P Lipo, RX	25~30 Minutes
Wind Resistence	≤6 class；Normal waypoint flights upto Class 4 wind	Normal flight at class 5 wind

Resources:
1. T580P+ GPS Edition Manual
2. T580P+ CGS Waypoints Flight Instruction Manual
