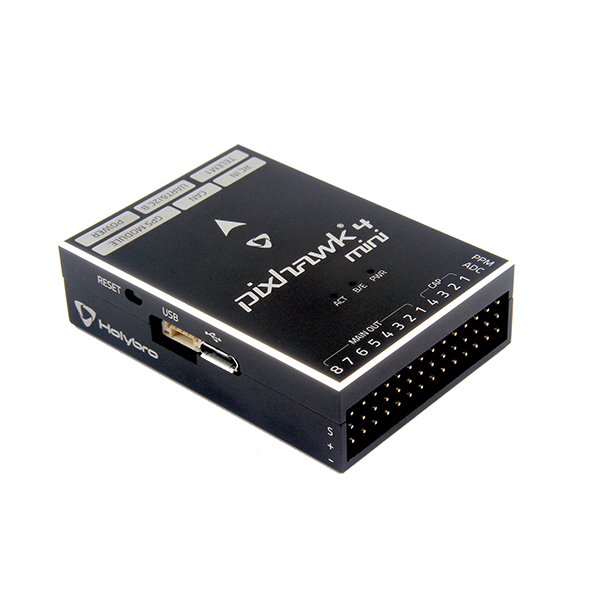

Holybro Pixhawk 4 Mini Autopilot Flight Controller Kit (Aluminium case)
Customers rating.
Add To Wish List
Added:2020/05/28
Updated:2020/05/28
Follow Us on:


  Tags: Holybro  Pixhawk  4  Mini  Autopilot  Flight  Controller  Kit  Aluminium  case

Features:

Specifications:

Holybro Pixhawk 4 Mini Autopilot Flight Controller Kit (Aluminium case)


Quick Summary

Main FMU Processor: STM32F765
- 32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM

On-board sensors:
- Accel/Gyro: ICM-20689
- Accel/Gyro: BMI055
- Magnetometer: IST8310
- Barometer: MS5611

GPS: ublox Neo-M8N GPS/GLONASS receiver; integrated magnetometer IST8310

Interfaces:
- 8 PWM outputs
- 4 dedicated PWM/Capture inputs on FMU
- Dedicated R/C input for CPPM
- Dedicated R/C input for Spektrum / DSM and S.Bus with analog / PWM RSSI input
- 3 general purpose serial ports
- 2 I2C ports
- 3 SPI buses
- 1 CANBuses for CAN ESC
- Analog inputs for voltage / current of battery
- 2 additional analog input

Power System:
- Power Brick Input: 4.75~5.5V
- USB Power Input: 4.75~5.25V
- Servo Rail Input: 0~24V
- Max current sensing: 120A

Weight and Dimensions:
- Dimensions: 38x55x15.5mm

Other Characteristics:
- Operating temperature: -40 ~ 85°c


Includes/Requires:
Includes:
