   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis Towerpro 5V/6V 3 Amp. UBEC (External BEC)
SKU:  TPUBEC
Browse HiModel
Towerpro 5V/6V 3 Amp. UBEC (External BEC)
Customers rating.
Add To Wish List
Added:2005/07/15
Updated:2007/06/05
Follow Us on:

Click for more images

  Tags: Towerpro  5V  6V  3  Amp.  UBEC  External  BEC

Features:

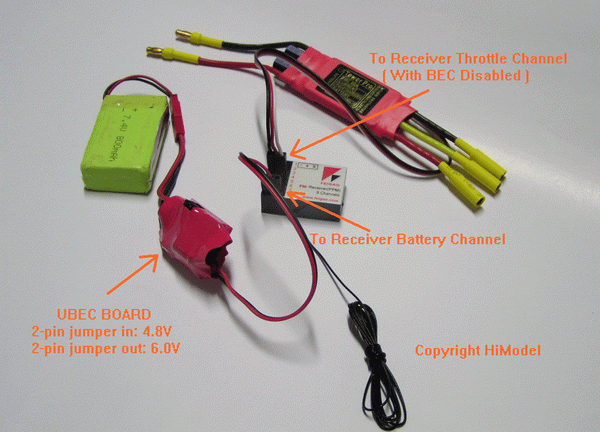

The UBEC Board is specially designed for using with those speed controllers without BEC function, to support more servos without using a separated battery to receivers and servos.

By using the UBEC unit, you can use up to 10No. standard servos.
Specifications:
Size:2.57*1.3*1.0cm
Weight:12g
Max Input Voltage: 35V ( 8 cells Lipo or 24 Cell Ni-Mh cells)
Output Voltage: 5V/6V (Jumper out:5V Jumper in: 6V)
Output Current: Consistent 3A
Max: 5A ( Less than 3 seconds)
PWM: 250KHZ
Max efficiency: 86%

Numbers of servos supported:

5V
6V
STD SERVO 10pcs 8pcs
HIGH TORQUE SERVO 5pcs 4pcs
DIGITAL SERVO 4pcs 3pcs







*Note: the color of shrinking material may vary from the picture.
