Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner AX-4008D 620KV Outrunner Brushless Motor for Quadcopter/Multi-rotor Aircraft
SKU:  AX4008
Browse HiModel

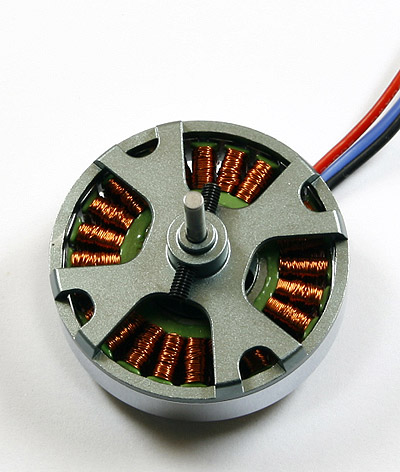

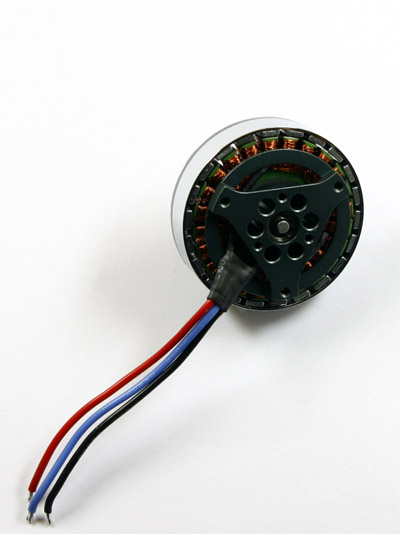

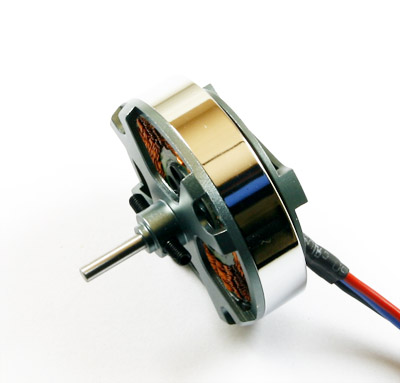

AX-4008D 620KV Outrunner Brushless Motor for Quadcopter/Multi-rotor Aircraft
Customers rating.
Add To Wish List
Added:2011/11/17
Updated:2012/04/05
Follow Us on:


  Tags: AX-4008D  620KV  Outrunner  Brushless  Motor  for  Quadcopter  Multi-rotor  Aircraft

Specifications:
Model: AX-4008D
KV (rpm/v): 620
Non-load current: 0.8a @10V
Lipo Battery (cell): 3S-4S Li-poly
Outer diameter: 45mm
Height: 26mm (excluding motor shaft)
Shaft diameter: 3mm
Exposed shaft length: 10mm
Mounting hole: M2.5 x 3
Mounting hole spacing: 32mm
Weight: 76g
Max continuous current: 18A
Max power: 250W

Application: specially designed for quadcopter and multi-rotor aircrafts.

Typical testing result:
Type: AX-4008 D KV: 620
Pole number 24N ,22 P
Propeller Voltage Current Power Pull RPM g/W radio
GWS 9050 11.5 V 4.5 A 51.75 W 407 g 6690 rmp 7.8647342995 g/W
15 V 7 A 105 W 665 g 8512 rmp 6.3333333333 g/W
GWS 1047 11.5 V 8.3 A 95.45 W 700 g 6250 rmp 7.3336825563 g/W
15 V 12.9 A 193.5 W 1129 g 7810 rmp 5.834625323 g/W
GWS 1060 11.5 V 6.5 A 74.75 W 545 g 6440 rmp 7.2909698997 g/W
15 V 10.1 A 151.5 W 855 g 8109 rmp 5.6435643564 g/W
10X4.5 11.5 V 8.3 A 95.45 W 695 g 6298 rmp 7.2812991095 g/W
15 V 12.9 A 193.5 W 1081 g 7825 rmp 5.5865633075 g/W
12X4.5 11.5 V 12.7 A 146.05 W 942 g 5695 rmp 6.4498459432 g/W
GWS 1147 15 V 17 A 255 W 1431 g 7310 rmp 5.6117647059 g/W
11.5 V 10.9 A 125.35 W 910 g 5905 rmp 7.2596729158
Includes/Requires:
Includes:
1 x motor

*Connectors are not included
