   FPV/ Aerial Photography Gimbal/ Gimbal Controller etc. Viewprotech Q10F 10X Optical Zoom 3-axis Camera Gimbal
   FPV/ Aerial Photography Cameras/Video Recorder/Capture
SKU:  PL-Q10F

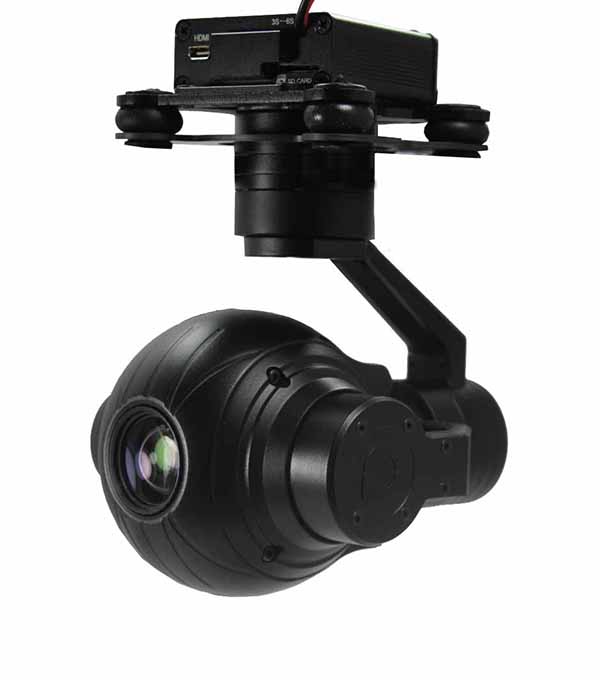

Viewprotech Q10F 10X Optical Zoom 3-axis Camera Gimbal
Customers rating.
Add To Wish List
Added:2020/12/19
Updated:2020/12/19
Follow Us on:


  Tags: Viewprotech  Q10F  10X  Optical  Zoom  3-axis  Camera  Gimbal

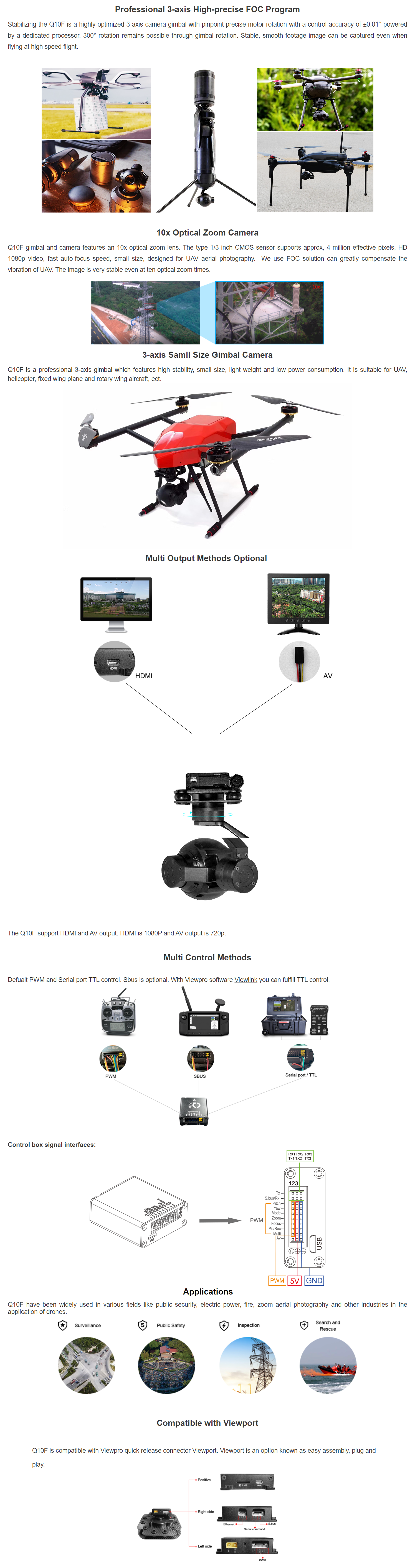

Features:
Specifications:

Viewprotech Q10F 10X Optical Zoom 3-axis Camera Gimbal


Hardware Parameter
Working voltage12V ~ 16V
Input voltage3S ~ 4S
Output voltage5V (connect with PWM)
Dynamic current320mA @ 12V
Idle current240mA @ 12V
Power consumption≤ 3.85W
Working environment temp.-20 ~ +50
Output micro HDMI(HD output 1080P 60fps)  / Analog
Local-storageSD card (Up to 32G, class 10, FAT32 or ex FAT format)
Control methodPWM  /S.bus/ TTL
Gimbal Spec
Angle range of structure designPitch/Tilt: ±120°, Roll: ±70°, Yaw/Pan:±165°
Angle range of software designPitch/Tilt: -45°~90°, Yaw/Pan: ±140°
Vibration anglePitch/Roll: ±0.02°, Yaw±0.03°
One-key to center
Camera Spec
Imager Sensor1/3inch CMOS
Total pixel4MP
Effective pixel2688*1520
Dynamic range65dB
Lens5MP
Optical zoom10x, F=4.9~49mm
Min object distance1.5M
Viewing angleHorizontal: 53.2°(Wide end) ~ 5.65°(Tele end)
Vertical: 39.8°(wide end) ~ 4.2°(tele end)
Focus: 66.6°(wide end) ~ 7.2°(tele end)
Sync systemProgressive scanning
Local video1080P 30fps local TF card
HD output1080P/720/480P 60fps HDMI1.4
AV outputStandard CVBS 1Vp-p
S/N ratio38dB
Min illuminationColor 0.05lux@F1.6
Backlight compensationBacklight compensation/strong light inhibition
GainAuto
White balanceAuto/Manual
Shutter speedAuto
Control systemUART/IR/PWM
Communication protocolPELCO-D, Hitachi protocol or VISCA
FocusAuto/Manual/One-time automatic focus
Focus speed2s
Lens initializationBuilt-in
User presetting bit20 sets
Image rotation180°, Horizontal/Vertical mirror image
OSDNot support
FotoformateJPEG
VideoformateMP4
FotoformateJPEG
VideoformateMP4
Packing Information
N.W.413g

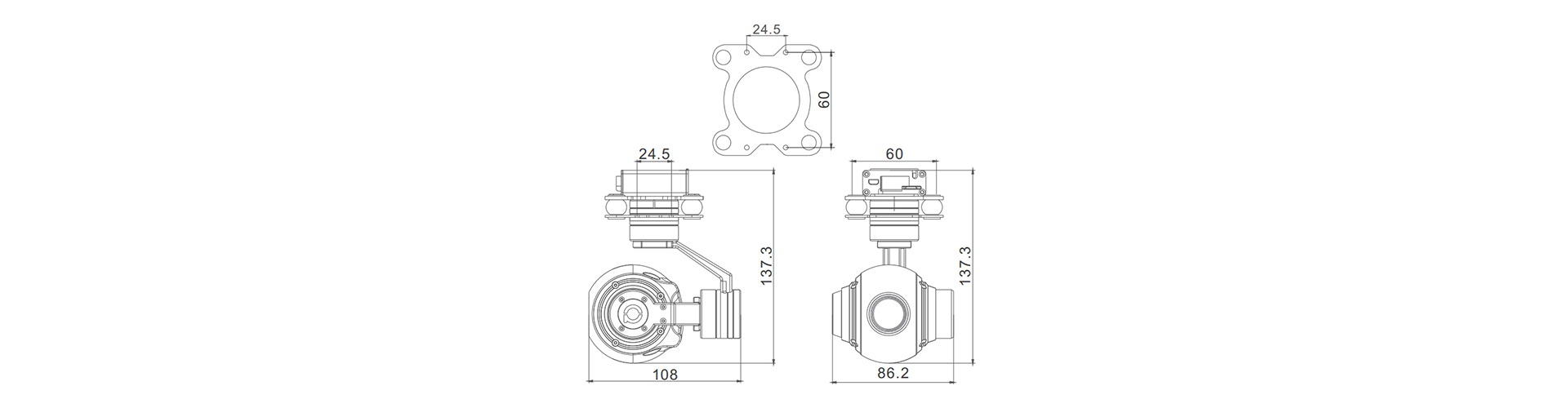

Product meas.108*86.2*137.3mm







Includes/Requires:
Includes:

1 x gimbal camra
1 x 16GB Micro SD card
