Radio Sets, Receivers, Servos, Gyros and Crystals etc.
   Radios Servos & Accessories Digital Servo & Accessories Power HD 12.3g/ 2.6Kg-cm Torque Digital Servo HD-1581HB
SKU:  1581HB
Browse Power HD

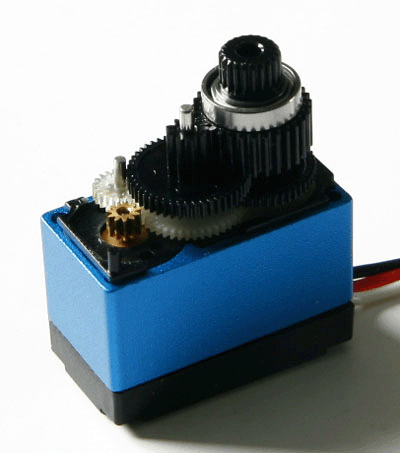

Power HD 12.3g/ 2.6Kg-cm Torque Digital Servo HD-1581HB
Customers rating.
Add To Wish List
Added:2008/07/18
Updated:2009/09/18
Follow Us on:


  Tags: Power  HD  12.3g  2.6Kg-cm  Torque  Digital  Servo  HD-1581HB

Specifications:
Type:HD-1581HB
Weight: 12.3 grams
Torque: 2.6 (kg.cm, VCC=6V)
Connector wire length: 250 ±5 mm
Speed: 0.16 (sec/60°)
Voltage: DC 6V

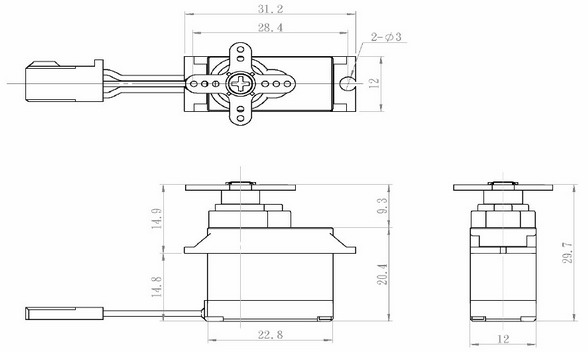

Dimension: 22.8*12*25.4 mm



Type:HD-1581HBWeight: 12.3 gramsTorque: 2.6 (kg.cm, VCC=6V)Connector wire length: 250 ±5 mmSpeed: 0.16 (sec/60°)Voltage: DC 6V Dimension: 22.8*12*25.4 mm
Item Gear
Type
Type Dimension(mm) Speed(sec/60°)@6.0 Voltage Torque(Kg-cm)
@6.0 Voltage
Weight
(g)
1 Metal HD-9150MG 40.7*20*42.4 0.18 16.0 61.0
2 Metal HD-9110MG 40.7*20*39.4 0.19 10.5 49.0
3 Half Metal HD-7150MG 40.7*20*39.4 0.14 7.20 49.0
4 Plastic HD-5680BB 40.7*20*39.4 0.14 6.50 42.0
5 Plastic HD-4180BB 40.7*20*37.0 0.17 4.10 41.0
6 Half Metal HD-2213MG 22.8*12*29.4 0.16 4.60 15.8
7 Half Metal HD-1810MG 22.8*12*29.4 0.13 3.90 15.8
8 Plastic HD-1581HB 22.8*12*25.4 0.16 2.60 12.3
9 Half Metal HD-2216MG 22.8*12*29.4 0.13 3.90 15.8
10 Plastic HD-2216HB 22.8*12*25.4 0.09 1.60 13.6
11 Metal HD-9660MG 40.3*20*37.2 0.16 20.0 52.4
12 Plastic HD-3688HB 35.0*15*29.2 0.11 4.60 26.0
Includes/Requires:
Includes:
1 x digital servo with servo horns
