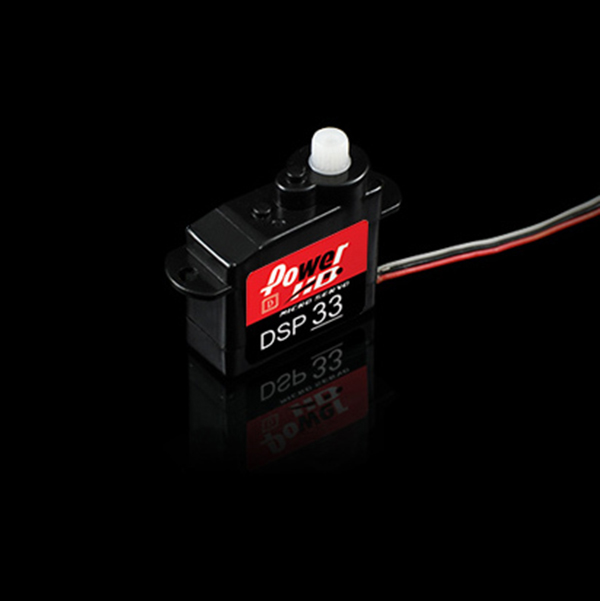

PowerHD Sub-micro Servo DSP33 (JR Connector)
Customers rating.
Add To Wish List
Added:2018/12/10
Updated:2018/12/10
Follow Us on:


  Tags: PowerHD  Sub-micro  Servo  DSP33  JR  Connector

Specifications:

PowerHD Sub-micro Servo DSP33 (JR Connector)


Torque(4.8V): 0.30 kg-cm (4.17 oz/in)
Torque(6.0V): 0.35 kg-cm (4.86 oz/in)
Speed: 0.09 sec (4.8V) │ 0.07 sec (6.0V)
Operating Voltage:4.8 ~ 6.0 DC Volts
Weight: 2.9 g (0.10 oz)
Bearing Type:No
Motor Type:Coreless Motor
Gear Type:Plastic
Operating Temperature:-20℃~60℃
Working frequence:1520μs / 333hz
Size:19.6 x 8.0 x 19.0 mm ( 0.77 x 0.32 x 0.75 in)
Includes/Requires:
Includes:
1 x servo
1 x servo horn set
