   Radios Radio Sets 2.4G Radio System Jumper T16 OpenTX Radio with JP4-in-1 Multi-protocol RF Module - Model 1
SKU:  JPT16-RT
Jumper T16 OpenTX Radio with JP4-in-1 Multi-protocol RF Module - Model 1
Customers rating.
Add To Wish List
Added:2019/08/13
Updated:2019/08/13
Follow Us on:


  Tags: Jumper  T16  OpenTX  Radio  with  JP4-in-1  Multi-protocol  RF  Module  Model  1

Features:

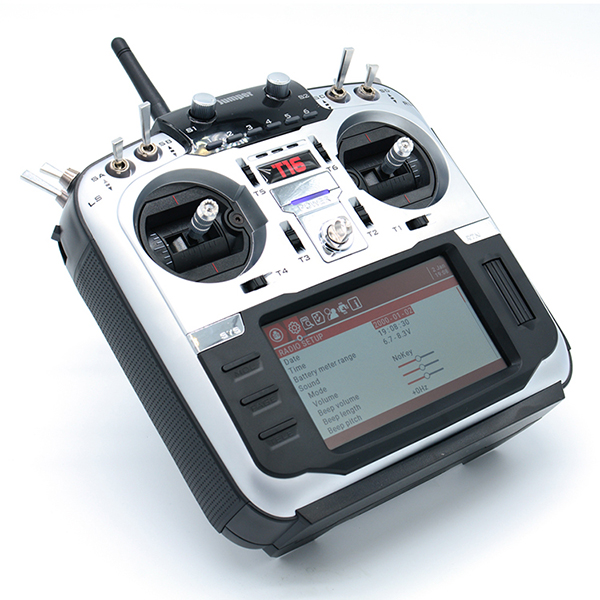

The Jumper T16 is a reasonably priced, high quality, full-sized radio transmitter thats compatible with multiple protocols (including FrSky, DSM/DSMX, and Futaba).


JumperXYZ's goal with the T16 was to create the most affordable, high-performance open source remote control on the market today. The T16 truly is the ONE radio to rule them all. With angle adjustable ultra-smooth dual bearing precision gimbals, large 4.3” display, more than ample input controls, integrated 6 position buttons for professional flight control systems, JR module bay supporting TBS Crossfire modules and many more features the T16 is a remarkable offering at this price point.

Never wanting to stand still the team at Jumper looked for a way to put the maximum amount of radio in the users hands for the minimum amount of cost. With advancements in technology and materials cost there really is no reason for a high end radio to have a high end price tag and Jumper have not only proven this point but they have smashed expectations, the T16 changes everything!


The T16 has undergone extensive testing for comfort and functionality, Jumper has taken community feedback from their previous products and rolled it all into this radio.


Features
STM32F429BIT6 MCU
Industrial grade 4.3 inch 480*272 outdoor readable color screen
Compatible with JumperTX and OpenTX firmware
Wheel menu button
Angle adjustable ultra-smooth dual bearing gimbals
Multi-protocol transmitter module with TBS CRSF support
Removable battery
Supports Telemetry
Memory 16M (can be expanded by TF card)
Voice function
Vibration reminder function
Standard JR module slot
6-Flight Mode Buttons (for APM and Pixhawk flight controllers)
Two-color LED status display

Specifications:

Jumper T16 OpenTX Radio with JP4-in-1 Multi-protocol RF Module - Model 1



Channels: 16
Voltage: DC7-8.4V
Battery: 2x 18650 (tray supplied) or 2S LiPo (batteries not included)
Current: 350mah (NO CRSF)
Dimensions: 180x190x58mm
Weight: 888g


JP4-in-1

Working Voltage: 6-9v
Working current: <=100ma
Operating frequency: 2.4G ISM band
RF power: +22DBM
Main control chip: STM32F103CBT6 (128K ROM, 20K RAM)
Module bay compatibility: FRSky, Jr and other dimensions: 64*49*33 (without antenna)
Net Weight: 42g (including antenna)
Software Compatibility: Suitable for radios using OpenTX or er9x/ersky9x
Firmware updatable: Yes, via USB.

RF Chip

Cypress Semiconductor CYRF6936: DSM/DSMX, Walkera Devo
Texas Instruments CC2500: FrSky, Futaba SFHSS
Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN, and most other Chinese models

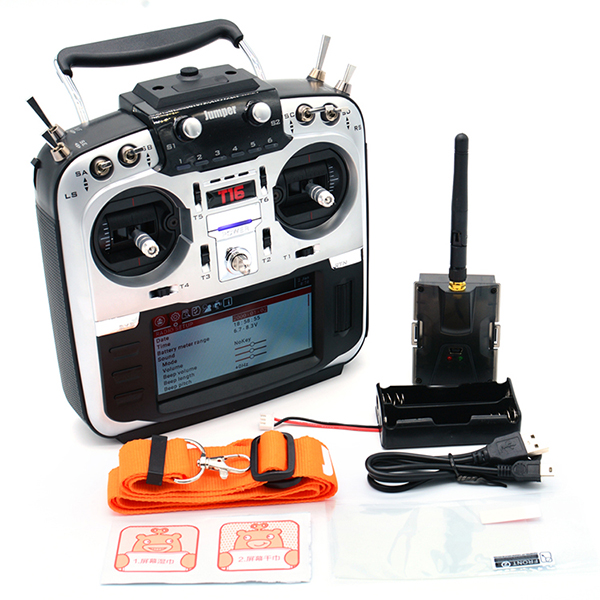

Includes/Requires:
Includes:
1x Jumper T16 Radio Transmitter
1x Li-Ion Battery Tray  (Battery is NOT included, 2x 18650 Li-Ion batteries are recommended)
1x USB Cable
1x Neck Strap
1x Screen Protector
1x Gimbal Parts
