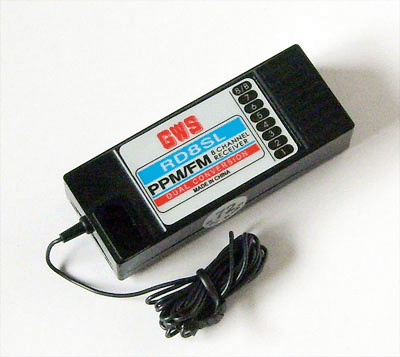

GWS 72Mhz 8CH FM DUAL CONVERSION GWRXS001
Customers rating.
Add To Wish List
Added:2006/04/30
Updated:2008/09/20
Follow Us on:


  Tags: GWS  72Mhz  8CH  FM  DUAL  CONVERSION  GWRXS001

Features:
1.The compact, lightweight and slim design make the 8-channel dual conversion FM receiver especially suitable for narrow fuselages.
2. Whole new designed, active frond end with dual gate MOS-FET to improve the inter-modulation and interference suppression. The AGC (Automatic Gain Control) stage features a broad regulatory range and ensures optimum reception both at close and long range.
3. The Multi-stage band passed filter and crystal filter are for narrow-band reception, high adjacent channel selectivity and interference rejection.
4.The JR. Futaba (72MHZ only) selection switch installed on the side of case for phase shift selection.
Specifications:
Sensitivity : 1μV

Adjacent channel rejection : batter than 65dB at ± 10k Hz

Image rejection : batter than 65dB

Spurious rejection : batter than 80dB

Inter modulation : batter than 65dB

Model No. of channels Reception system Operating voltage Current drain

Weight

Size ( L x W x H )

Range

(g) (oz) (mm) (in) (m) (ft)
GWRXS001 8 FM (PPM) Dual conversion 4.8V~7.2V 10mA 22 0.78 65x25.5x15.5 2.56"x1"x0.6" 600 2000
Includes/Requires:
Includes:
1 x receiver

Requires:
1 x RX crystal
