   Radios Servos & Accessories Digital Servo & Accessories GENING 9.8g/ 1.4kg/ .05 sec High Speed Digital Servo D905
SKU:  GND905
GENING 9.8g/ 1.4kg/ .05 sec High Speed Digital Servo D905
Customers rating.
Add To Wish List
Added:2011/07/06
Updated:2011/07/06
Follow Us on:


  Tags: digital servo  micro servo  GENING  high speed  hi-speed

Features:
The D905 digital servo has super fast speed and precise centering. It is specially siutable as tail servo for 100,200,250 and 400 size electric 3D helicopters.

The High-Speed Digital Servo provides extremely accurate neutral position. These servos are tailored for 3D fixed wing planes and micro electric helicopters. These digital servos can also display their advantage in the field of industrial automation which needs accurate and high speed control.
High fidelity MCU and excellent algorithm make it work smoothly and keep high frequency noise minimized.
The Digital Servos adopt Frequency Conversion Technology which guarantees cool running temps under wild and long time 3D flight! This advanced technology also provides lower power consumption and guarantees the durability of D905 Digital Servos. The servo has excellent performance as tail servo and can bring you lots of 3D flying fun.
Specifications:
Full AVCS Gyro DS mode compliant
Operating Voltage: 4.8-6.0 Volts
Operating Speed (4.8V): 0.06sec/60°
Operating Speed (6.0V): 0.05sec/60°
Stall Torque (4.8V): 1.2kg.cm
Stall Torque (6.0V): 1.4kg.cm
Dead Band Width: ≤2usec
Current Drain (4.8V): 5.0mA/idle and 130mA no load operating
Current Drain (6.0V): 6.0mA/idle and 140mA no load operating
Dimensions: 0.92" x 0.45"x 0.86" (23.6 x 11.8 x 22mm)
Weight: 9.8g
Bearing Type: Top Ball Bearing
Gear Type: Carbon-nylon Gears
Motor Type: 3-Pole Neodynium Magnet
Connector Wire Length: 180mm
Includes/Requires:
Includes:

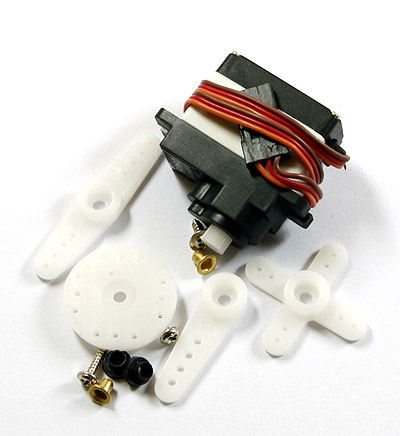

1 x digital servo with servo horns
