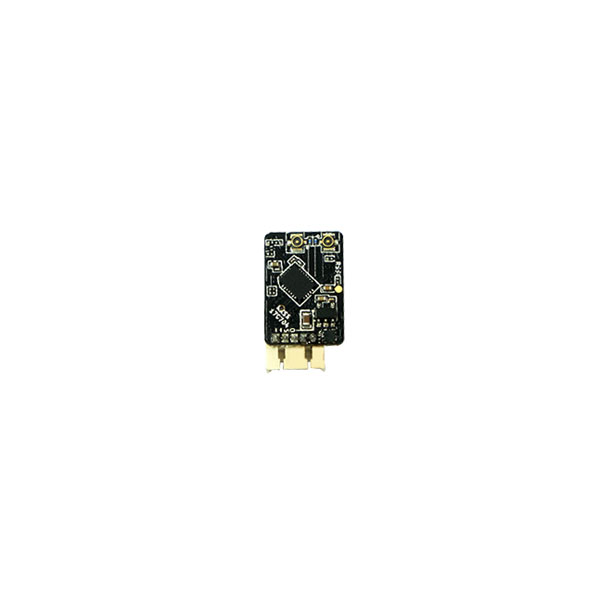

FrSky R-XSR 2.4GHz 16CH ACCST Micro Receiver w/ S-Bus & CPPM
Customers rating.
Add To Wish List
Added:2018/07/05
Updated:2019/09/04
Follow Us on:


  Tags: FrSky R-XSR 2.4GHz 16CH ACCST Micro Receiver w/ S-Bus & CPPM

Features:
The FrSky ultra mini receiver R-XSR is the evolution of the popular full range XSR receiver. The R-XSR is a standalone receiver with all the functionality of the full size XSR (including telemetry), but at 1/3 size and weight of XSR receiver. The R-XSR also has an integrated diversity with 2x antennas for a solid RC link, and the IPEX connector makes it convenient to replace antennas.


Features
Ultra mini size and light weight
Support telemetry and Smart Port enabled
Full range
Switchable SBUS/ CPPM signal output
Supports redundancy function
IPEX connector, replaceable antennas
Specifications:

FrSky R-XSR 2.4GHz 16CH ACCST Micro Receiver w/ S-Bus & CPPM

Dimension: 16*11*5.4mm (L*W*H)
Weight: 1.5g
Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
Operating Voltage Range: 4~10V
Firmware Upgradable
Compatibility: FrSky X Series modules and radios in D16 mode
Includes/Requires:
Includes:
1 x FrSky R-XSR receiver
