Radio Sets, Receivers, Servos, Gyros and Crystals etc.
   Radios Radio Sets 2.4G Radio System FLYSKY 2.4Ghz 3-Channel LCD Transmitter and Receiver Set FS-GT3B
   Radios Radio Sets 2 - 4 Channel Radios
SKU:  FSGT3B
FLYSKY 2.4Ghz 3-Channel LCD Transmitter and Receiver Set FS-GT3B
Customers rating.
Manual:
Add To Wish List
Added:2011/05/09
Updated:2011/05/09
Follow Us on:


  Tags: 2.4Ghz  pistol radio

Choose other components to build your saving combo:

Specifications:
Transmitter Specifications:
A. Channels:3channels;
B. Model type :car/boat;
C. RF power : no more than 10Mw;
D. Modulation : GFSK;
E. System type : AFHDS;
F. Sensitivity : 1024;

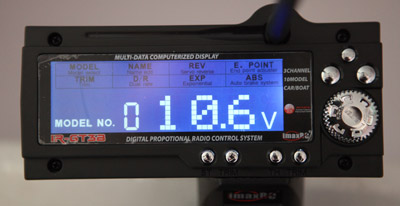

G. Low voltage warning : yes(less than 9.5V);

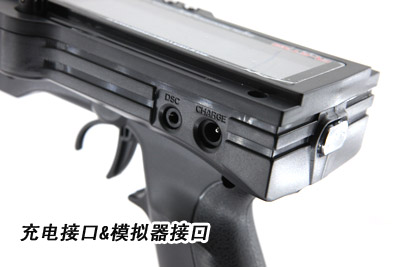

H. DSC port : yes(3.5mm);
I. Charger port : yes;
J. Power : 12VDC(1.5V*8);
K. Weight : 395g;
L. ANT length : 26mm;
M. Size : 154*127*270mm;
N. Color :black;
O. Certificate : CE (0678) FCC.

Receiver Specification:
Specifications:
A. channels : 3 channels;
B. Model type : car/boat;
C. RF receiver sensitivity : -105dbm;
D. Modulation : GFSK;
E. System type : AFHDS;
F. Sensitivity : 1024;
G. Faisafe : yes(channel 2);
H. Bind port: yes(channel 3);
I. Power port : yes (VCC);
J. Power : 4.5-6.5 VDC (1.5V*4);
k. Weight : 5g;
L. ANT length : 26mm;
M. Size : 37.6*22.3*13mm;
N. Color :black;
O. Certificate : CE(0678) FCC
Includes/Requires:
Includes:

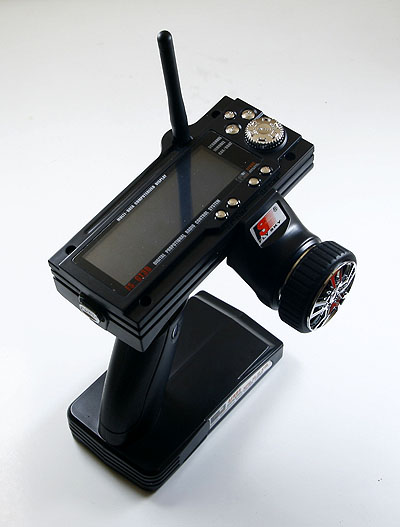

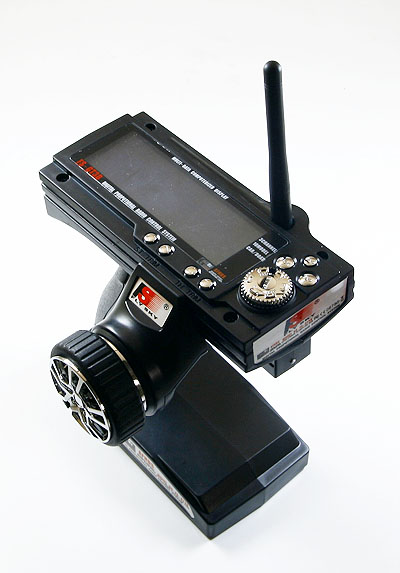

1 x 2.4G pistol transmitter

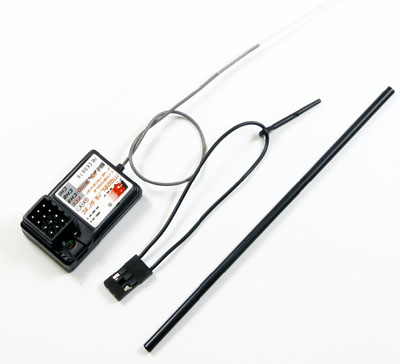

1 x 3-channel 2.4G receiver
1 x instruction manual CD disk (no printed manual)

(*No RX battery, no TX battery, no servos, simulating software and simulator cable are not included in this radio kit.)
