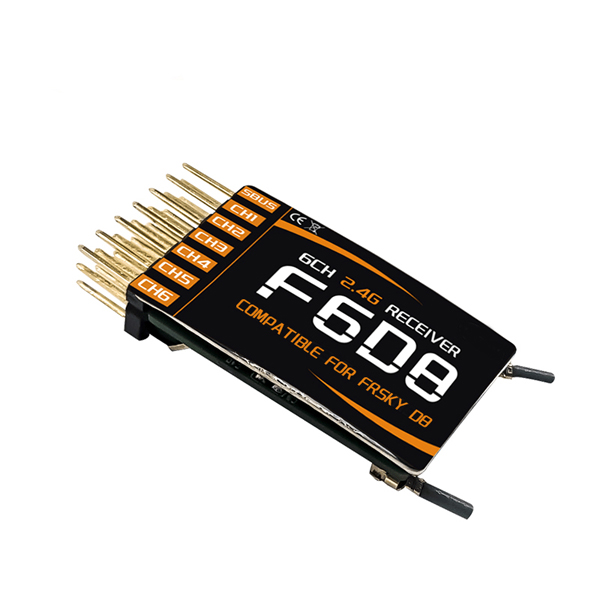

CORONA 2.4Ghz 6-Channel PWM/ SBUS Receiver F6D8 (D8 compatible)
Customers rating.
Add To Wish List
Added:2022/06/15
Updated:2022/06/15
Follow Us on:


  Tags: CORONA  2.4Ghz  6-Channel  PWM  SBUS  Receiver  F6D8  D8  compatible

Features:
Corona F6D8 D8 Compatible receiver isavailable for any TX that use the Frsky D8 protocol, such as FrSky two waytelemetry modules: DFT, DJT, DHT, XJT, XJT_lite, etc.


Features:

      Six channels of PWM output for servos.


      One SBUS channel for special usage(connect FC or expand servo channel).


That canbe set the alarm warning on low voltage and return signal in the TX



Specifications:

CORONA 2.4Ghz 6-Channel PWM/ SBUS Receiver F6D8 (D8 compatible)



Specifications:

Dimension: 40x18x10mm

Weight: 5g

Operating VoltageRange: 3.5V-10.0V

Operating Current: Max60mA

Operating Range: Fullrange (max 1.5km)

Servo Frame Rate:18ms

SBUS Frame Rate: 9ms


Bind procedure:



First, turnon the TX and swicth to Bind mode. Second, power on the receiver whileholding the F/S button on the receiver (not connect any servo or other device) and you can see agreen LED going on steady on the receiver. And buzzer begins to sound beebee.The red LED on the receiver will flash, indicating the bind iscompleted. Turn off both the transmitter and the receiver. Turnon the transmitter and power on the receiver. The greenLED that going on steady on the receiver indicates that the receiver isreceiving commands from the transmitter.



Failsafe Setting:

    The compatible receivers support failsafe seton the receiver. Turn on the transmitter and power on the receiver. User canpress and release the F/S button as pictured and all channels data will berecorded by the receiver in the first 30s before receivers and TX are connected.When operating failsafe setting, it is not recommended that servos or otherdevices connect with the receiver. After completing failsafe setting, a stablepower supply to the receiver is recommended.

      Failsafe setting will be cancelled whenresetting the bind procedure

LED Status Indication

RED

GREEN

Indication

stable

off

No Signal

off

stable

Good Signal

flash

stable

Not Very Good Signal

flash

flash

Poor Signal

Includes/Requires:
Includes:
1 x receiver
