▲High Speed, High Resolution, optimized PCMS 4096 " High Speed, Silk-like smooth"

▲Convenient stick adjustment, make you free usage

Tree-like Multilayer Menu, human oriented design, easy controlling

Excellent white LED backlight, less visual tiredness

132 * 64 FSTN LCD screen

10 point curve (in any X and Y direction edition), easy complex curve adjustment

Data transfer function, easy teaching and learning

Multi-function, intuitive data setting, easy checking

9 channels R/C System (4096 Resolution)

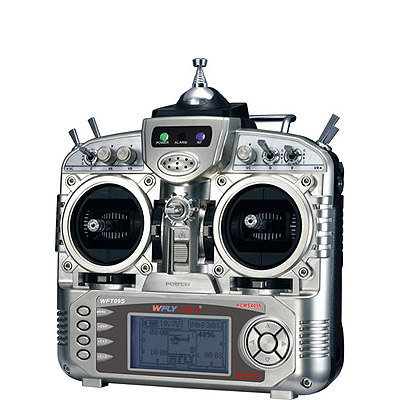

Model: WFT09S

Use in: airplane, helicopter, glider, car, boat

Band: 35MHz

Output power: ≤750mW (35MHz-75MHz)

Modulation: PPM/PCMS 1024/PCMS 4096

85- model memory

RF module: individual

Resolution: 4096

Power: 9.6-12V

Mix: PROG.NOR.MIX (7 series) PROG.CUR.MIX (4 series)


RECEIVER
Receiver type: WFR08-P

* Both mode 1 & mode 2 are available, mode 2 will be provided by default for international orders, you can specify the stick mode by leaving a message in the Remark field on the last step when place the order.

THIS RADIO SET NOW COME IN FOAM PACKING ONLY, WITHOUT THE OUTER COLOR CARTON BOX.

Includes:
1 x transmitter
1 x RF module
1 x transmitter battery holder
1 x receiver battery holder
1 x neck strap
1 x trainer cable/data transfer cable
1 x simulator conversion cable (this is only a conversion cable for simulator, simulator and cable between simulator to PC to be purchased separately)
1 x WFR08-P PPM receiver (software decoding)
1 x switch harness

* No printed instruction provided with the radio, please download electronic edition manual here.
* Charger is no longer included from factory since May 2011.

The crystals for TX and receiver are all included, but if you need extra crystal, you can refer to the following for the correct types:

TX crystal Click here


RX Crystal: Click here
