   Radios Servos & Accessories Digital Servo & Accessories 12g/ 2.0kg/ .10 sec Digital Micro Servo MD933
SKU:  MD933D

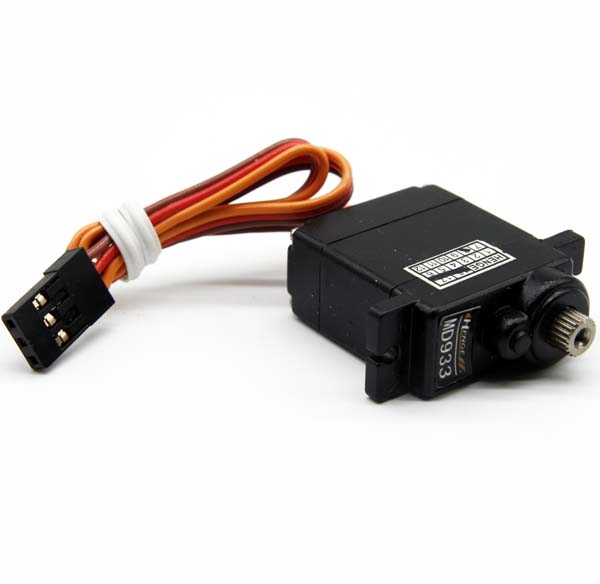

12g/ 2.0kg/ .10 sec Digital Micro Servo MD933
Customers rating.
Add To Wish List
Added:2009/07/18
Updated:2010/07/30
Follow Us on:


  Tags: 12g  2.0kg  .10  sec  Digital  Micro  Servo  MD933

Features:
MD933 digital servos have following technique characteristics:
1.Use metal gears, especially use steel material in output gear, which has better intensity , abrasion resistance and accuracy, makes sure servo’s output deviation very small after long time running.
2. Use high quality motors as FUTABA's, makes sure the servo's life longer, and tests prove it can continually run in high speed for 50 hours.
3.Use Japanese raw material to produce outer shell, which is more sturdy and durable and can bear 120℃ temperature.
4. Rapid response control, better acceleration.
5. Very nice consistency, center error less than ±0.5 degree, angle ±40 degree, biggest ±60 degree, error less than ±0.5 degree.
6. Have overload current protection function, even if the output gear is blocked, motor and electronics component will not be damaged.
7.Suitable to be used in 450 dynamoelectric helicopters to control the inclined dishes and in fixed wing airplanes
Specifications:
Operating voltage range: 4.5V—6.0V
Operating temperature range: -20℃ to +60℃
Operating speed: 0.10 sec/60℃ 6V 0.12 sec/60 ℃ 4.8V
Torque: 2.0kg.cm 6V 1.8kg.cm 4.8V
Idle current: 5mA at stopped
Running current range: 50-150mA
Block up to turn electric current: 600mA
Dead band width: ≤4usec
Angle deviation: center :<±0.5 degree; angle ±40 degree, error :<±0.5 degree
Size: 22.5×11.5×24.6mm
Weight: 12g
Bearing material: Metal
Gear material: 4 metal gears and 1 nylon gear
Connector wire length: 21cm
Includes/Requires:
Includes:
1 x digital servo with servo horns
