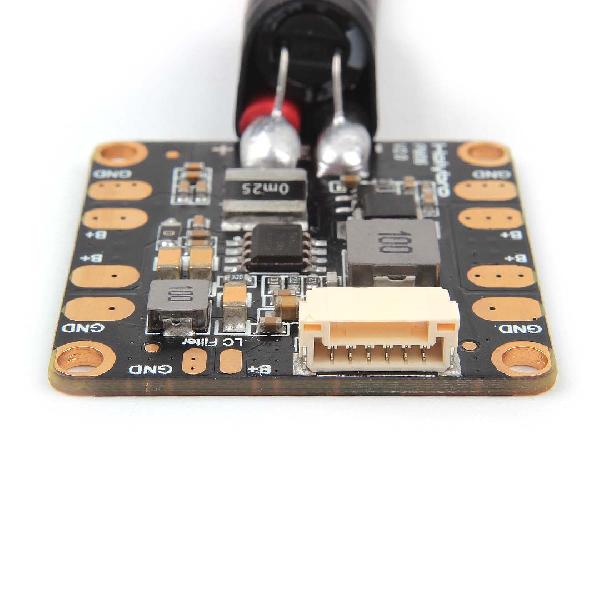

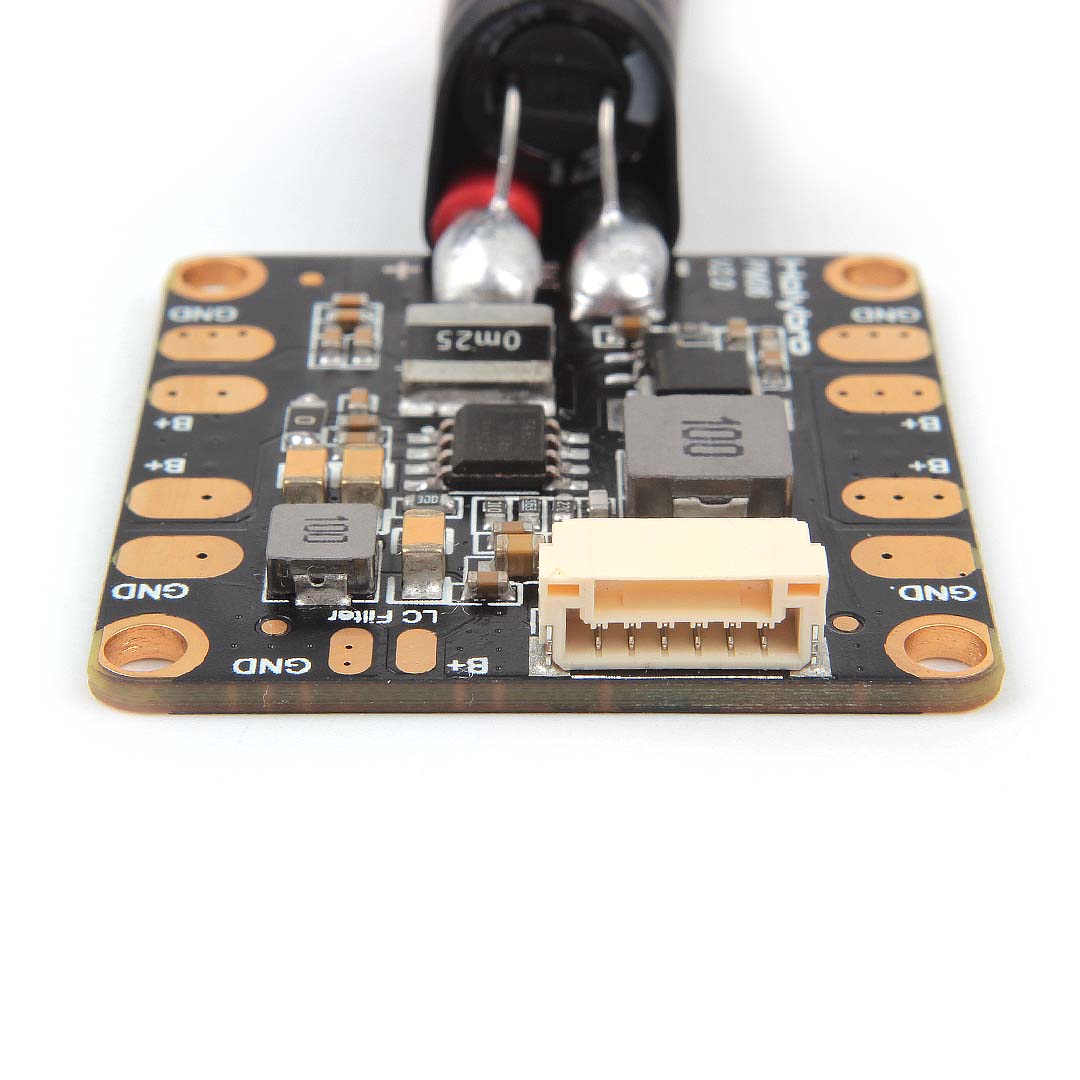

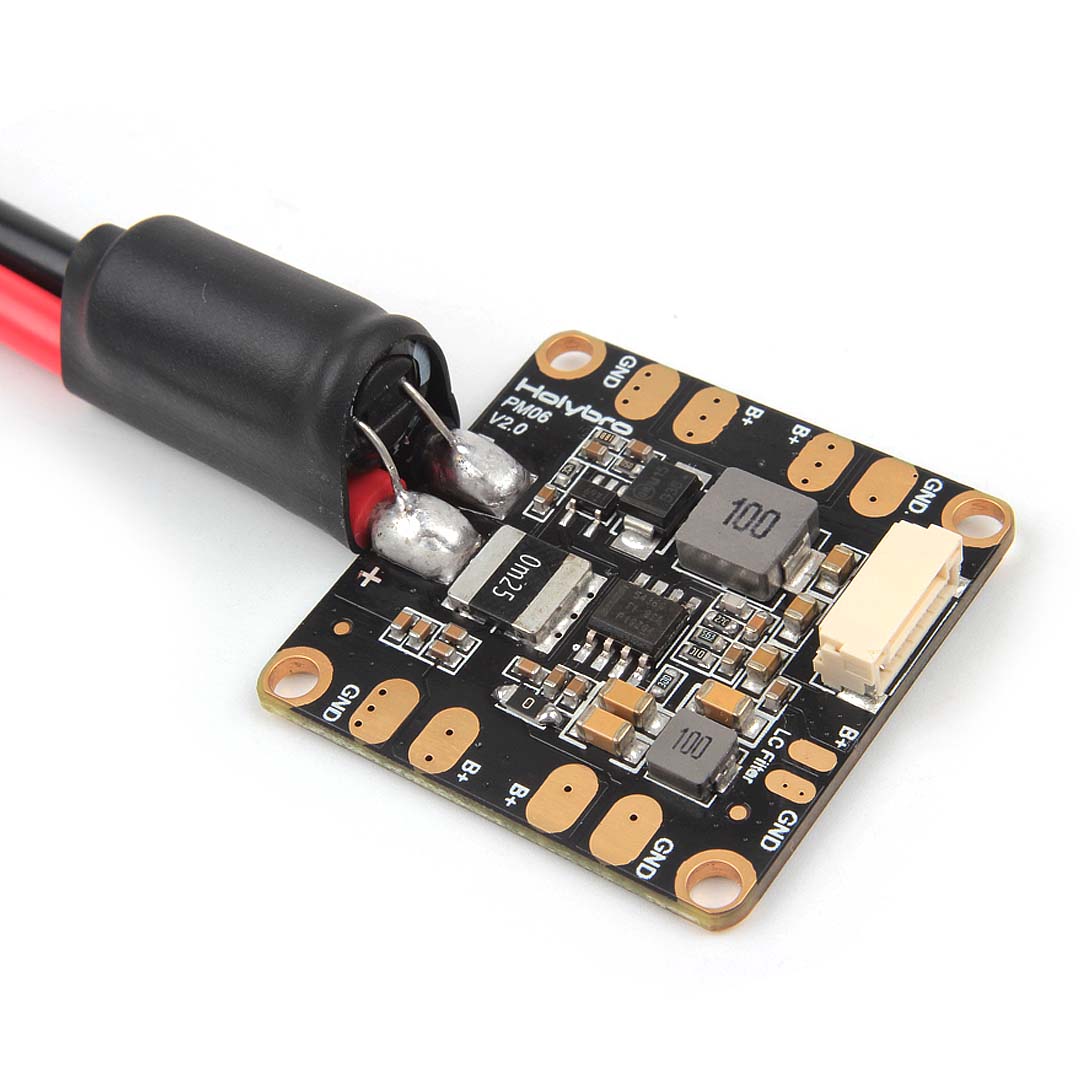

Holybro Micro Power Module (PM06 v2)
Customers rating.
Add To Wish List
Added:2021/06/17
Updated:2021/06/17
Follow Us on:


  Tags: Holybro  Micro  Power  Module  PM06  v2

Features:

This PDB has 5v output 3A output

Integrated voltage & current sensor for flight controller

UBEC Maximum Input Voltage: 7~42V(10S LiPo)

PCB Maximum Continuous Current:120A

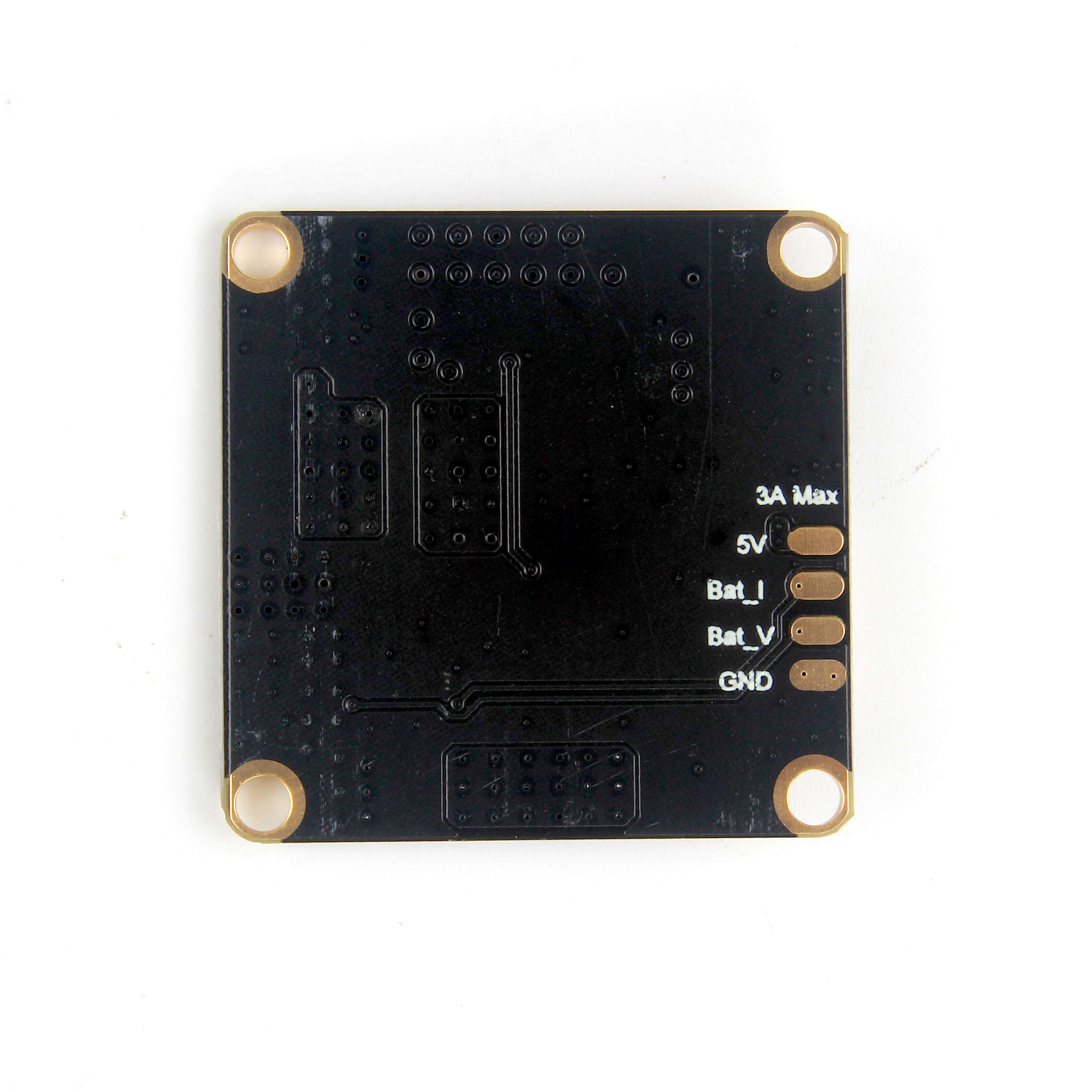

Pin Map:


Specifications:

Holybro Micro Power Module (PM06 v2)


PCB Current: 120A continued
UBEC Current: 3A Max
Power input: DC 7V~42V(2S~10S)
Power output: DC 5.1V~5.3V
Dimensions: 35x35x5mm
Mounting hole: 30.5mm*30.5mm
Weight: 24g

Make the PM06 show the quantity of electric charge of your battery
Mission Planner setup:

  1. Connect PM06 to the battery, also connect it to Mission Planner via USB.
  2. Click “INITIAL SETUP” and come to the menu “Battery Monitor”.
  3. Make “Monito” into “Analog Voltage and Current”.
  4. Make “Sensor” into “9: Holybro Pixhawk4 PM”.
  5. Make “HW Ver: “The Cube or Pixhawk” (pixhawk4,pixhawk4mini,pix32v5,pix32)”
    “HW Ver:  Leave this blank(Durandal)”
  6. Input “18.182” into Voltage divider (Calced).
  7. Input “36.364” into “Amperes per volt”.
  8. Disconnect and reconnect it to finish the setting up.(“Measured battery voltage” shows the current quantity of electric charge of the battery.)

HW Ver: “The Cube or Pixhawk” (pixhawk4,pixhawk4mini,pix32v5,pix32)

HW Ver:  Leave this blank(Durandal).Or you can desigante it in the Full Parameter List
Command: BATT_CURR_PIN   Value: 17
Command: BATT_VOLT_PIN   Value: 16


Includes/Requires:

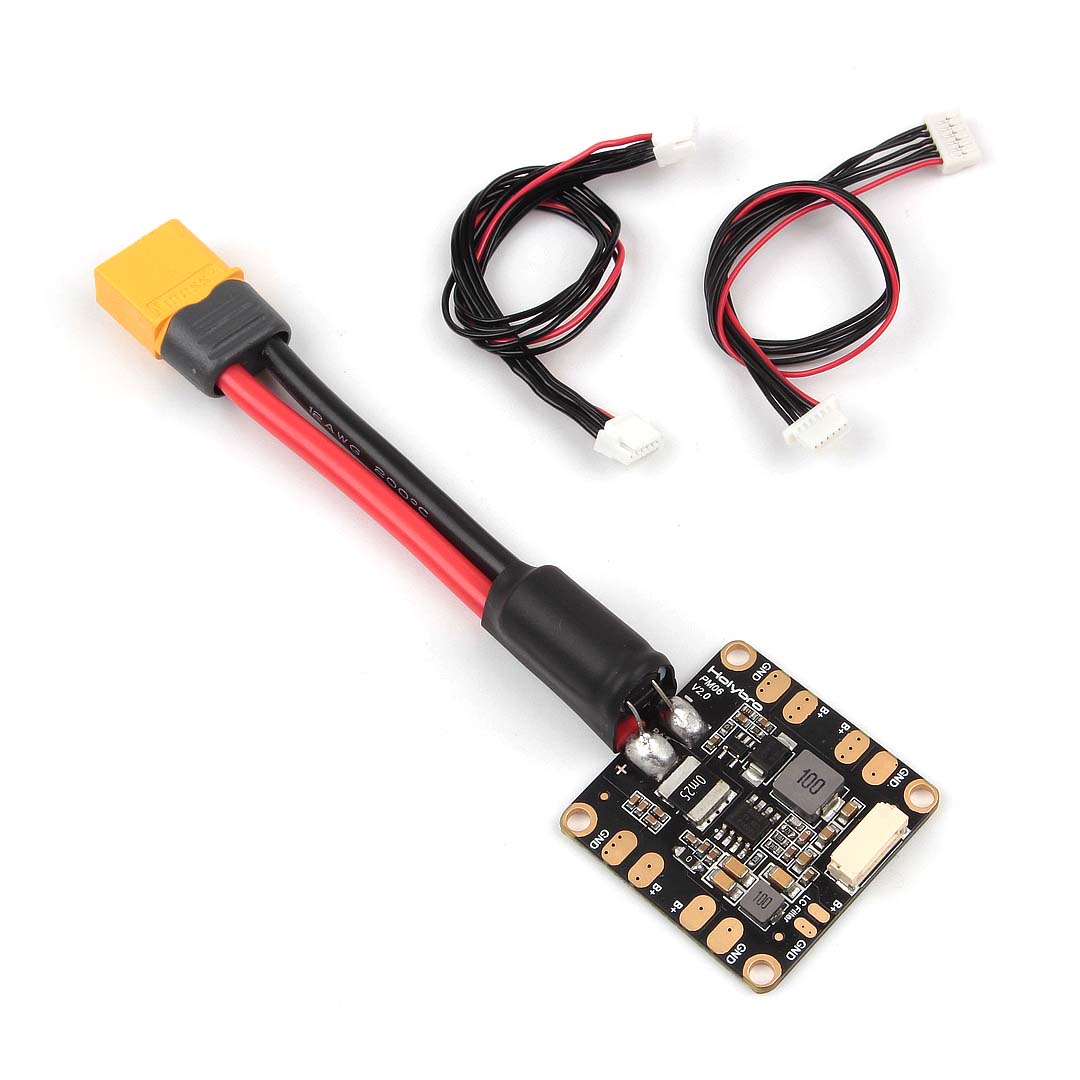

Includes:
1x  PM06 board
1x  80mm XT60 connector wire (installed)
1x  Electrolytic capacito: 220uF 63V(installed)
1x  JST GH 6pin cable
1x  JST SH 6pin cable
