   Multi-rotors Motors Hobbywing XRotor 3115 1050KV FPV Brushless Motor
   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner
SKU:  XR311510
Browse HOBBYWING

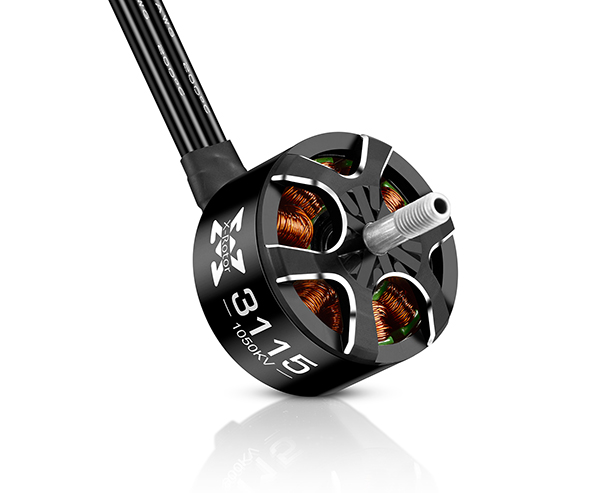

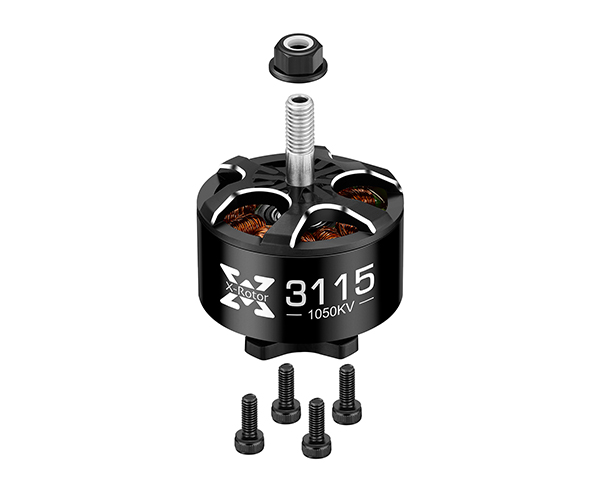

Hobbywing XRotor 3115 1050KV FPV Brushless Motor
Customers rating.
Add To Wish List
Bookmark and Share
Added:2025/07/15
Updated:2025/07/15
Follow Us on:

X81655854819

PRICE(USD):
    $12.31   In stock
Member PRICE:
    Sign in or Sign up for member price

QTY:


  Tags: Hobbywing  XRotor  3115  1050KV  FPV  Brushless  Motor

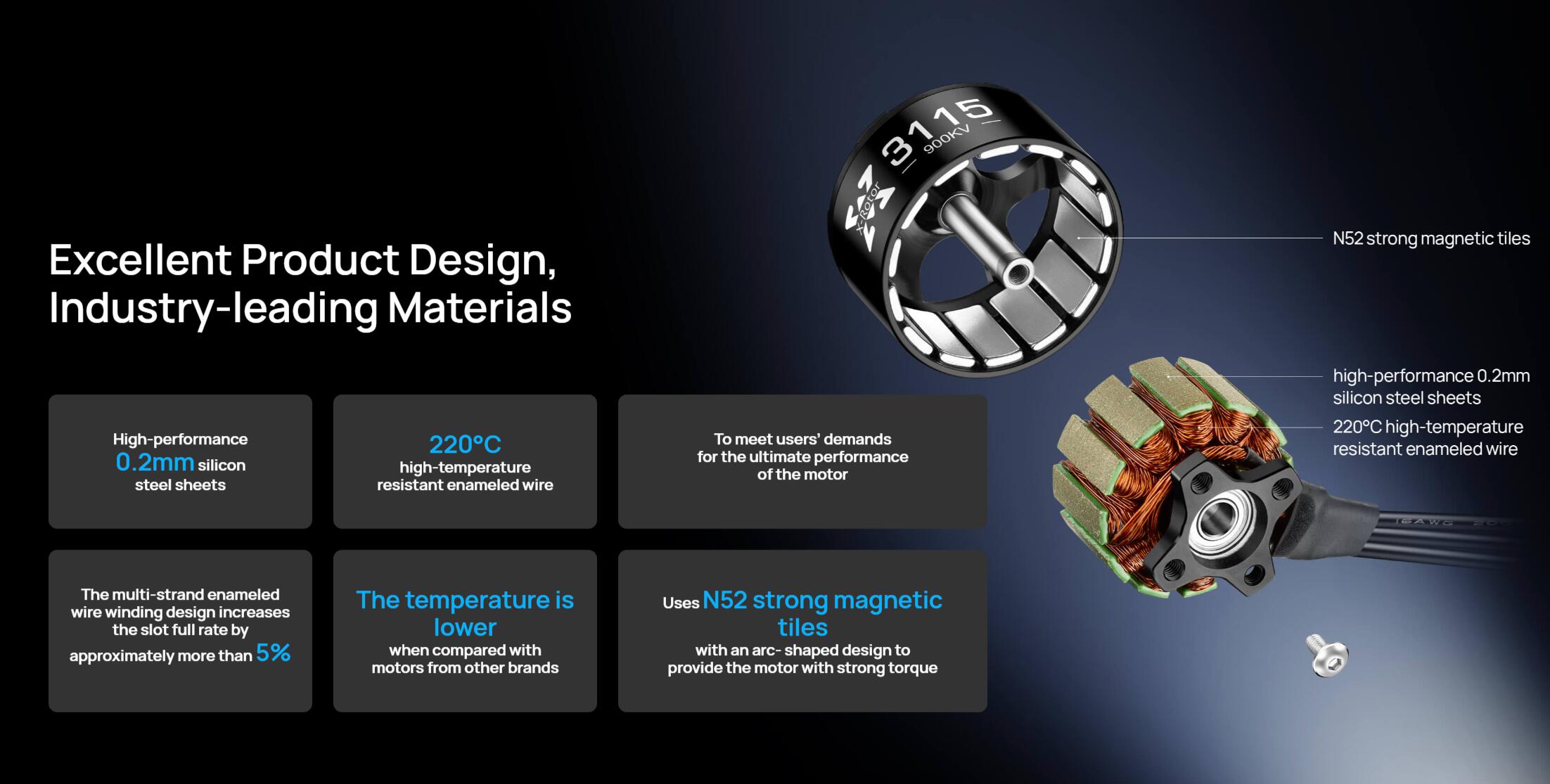

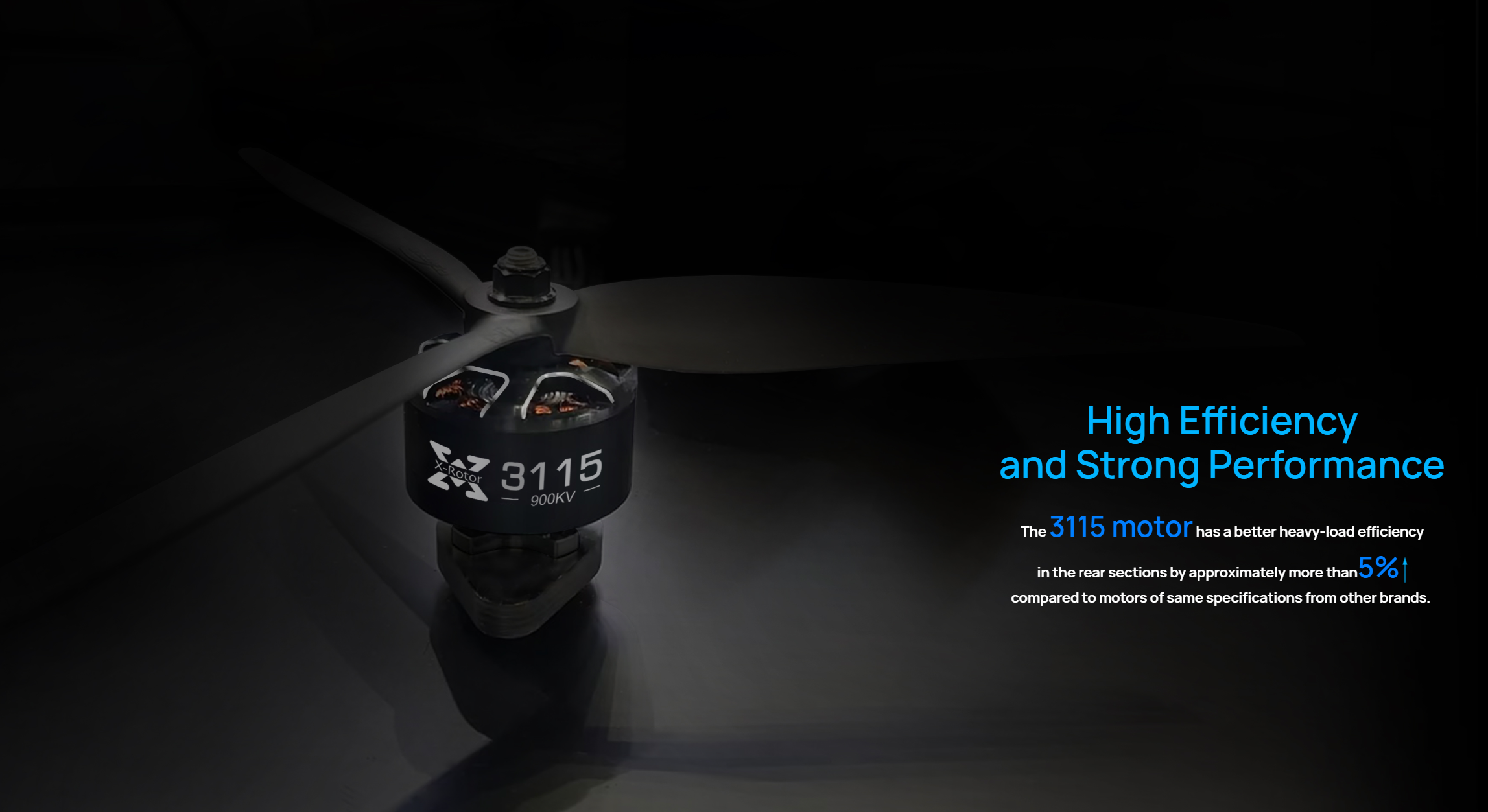

Features:

Specifications:

Hobbywing XRotor 3115 1050KV FPV Brushless Motor


Specifications
Product Number3041800730418008
KV Rating900KV1050KV
LiPo Cells(LiPo)4-6S4-6S
No-Load Current2.0A/24V2.8A/24V
Maximum Continuous Current81A/9s70A/30s
Maximum Continuous Rating1940W/9s1675W/30s
Maximum Thrust5177g4420g
Motor Weight125g126g
Motor SizeΦ37.2 *32mmΦ37.2 *32mm
Slot/Pole12N14P12N14P
Wire Size16AWG16AWG
Wire Length300mm300mm
Enamelled Wire Insulation Class220℃ High temperature Resistant, H Class insulation220℃ High temperature Resistant, H Class insulation
Internal Resistance41mΩ31mΩ
Shaft DiameterD5+M5D5+M5
Shaft Length16mm16mm
Screw Diameter / ThreadΦ19mm-4*M3Φ19mm-4*M3
Recommended
Props/ESCs
Recommended ESCXRotor FPV G2 65A 4in1 ESCXRotor FPV G2 65A 4in1 ESC
Propeller6S:HQ9x4x3;HQ9x5x3;HQ10x4.5x3;HQ10x5x36S:HQ8x4.5x3;HQ9x4x3
Includes/Requires:
Includes:

1 x motor XRotor 3115 1050KV
