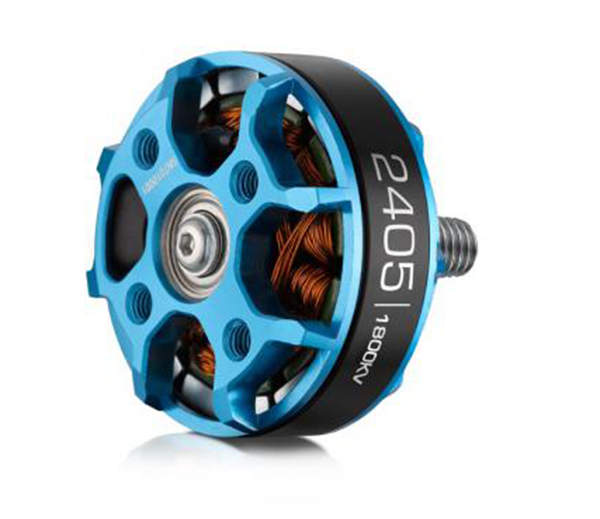

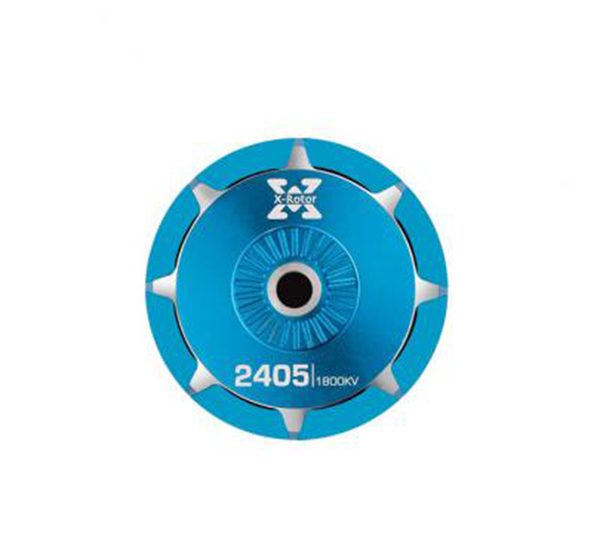

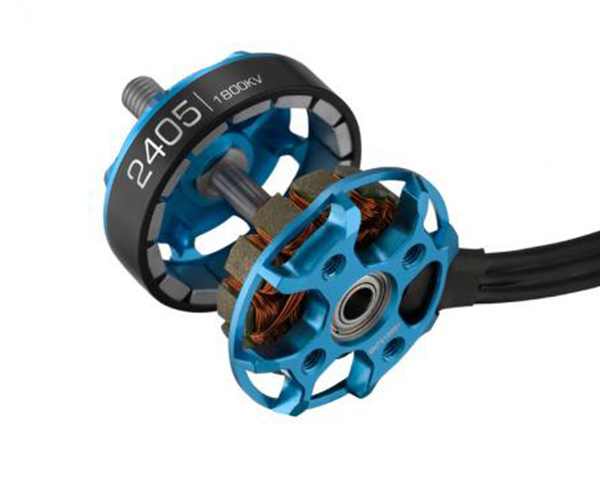

Hobbywing XRotor 2405 1800KV Multicopter Outrunner Brushless Motor XRotor-2405-1800KV-BLUE-V1

Specifications

Product Name

XRotor 2405 1800KV

XRotor 2405 2250KV

XRotor 2405 2850KV

Product Number

30405406

30405407

30405405

Relevant Parameters

KV Rating

1800KV

2250KV

2850KV

LiPo Cells

4S

No-Load Current(A/10V)

1.2A

1.4A

1.8A

Motor Resistance

0.062Ω

0.047Ω

0.031Ω

Max Continuous Current / Power

25A/420W

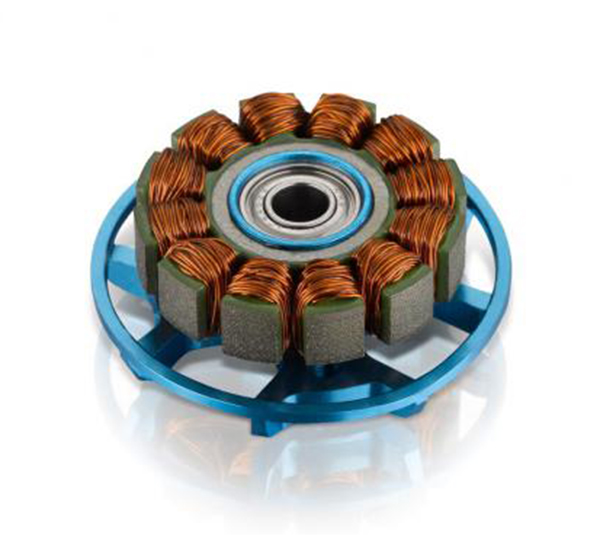

Stator Diameter/Thickness

24mm/5mm

Slot/Plot Count

12/14

Motor/Shaft Diameter

30.8mm/5mm

Motor Length (w/o, w/ Shaft)

15.9mm/29.4mm

Weight

35.5g

Recommended Props/ESCs

5045 Three-bladed Propeller | 6040 Two-bladed Propeller

5045 Three-bladed Propeller | 5040 Two-bladed Propeller

Xrotor Micro 30A BLHeli-S Dshot600 or above

Includes:
1 x motor
