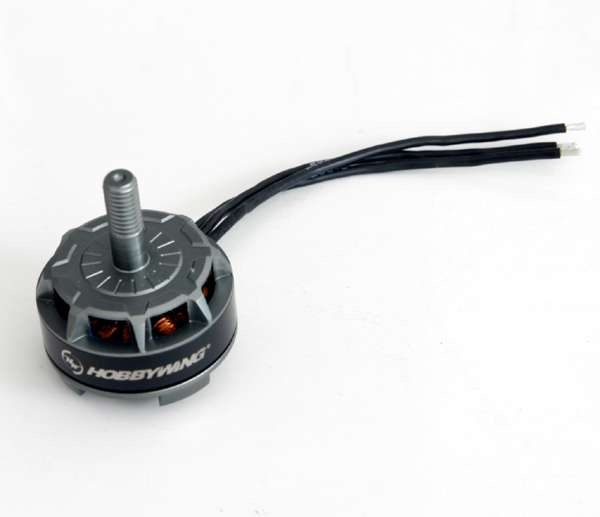

Hobbywing XRotor 2205 2300KV Multicopter Outrunner Brushless Motor - CW
Customers rating.
Add To Wish List
Added:2016/07/28
Updated:2016/07/28
Follow Us on:


  Tags: Hobbywing  XRotor  2205  2300KV  Multicopter  Outrunner  Brushless  Motor  CW

Features:
Super Thrust
The maximum thrust of up to 1.25KG provides sufficient power for FAV drone(s).



Excellent Product Design
1、Stator, rotor and shaft made of high-strength aluminum alloy greatly improve the shock resistance of the motor.
2、Concave anti-skid teeth combined with locknut and special internal circlip (or snap ring) effectively
prevent rotor from loosing or slipping and enhance the reliability of the motor.
3、Neat winding with low resistance guarantees the balanced current of the motor.
4、Eight-bladed centrifugal fan reduces operating temperature of the motor; clear rotation direction mark
on the motor case helps installation.




Low Vibration & Nois
The precisely balanced rotor guarantees users low
vibration & noise during the motor’s high-speed rotation.

Top Quality Components

● Special 200 o Cheat-resistant windings (after vacuum dip coating treatment) can stand high,
surge current.
● N54 super magnets guarantee high torque output of the motor.
● Super thin silicon steel sheets imported from Japan guarantees low (power) loss, less heat
generation but high magnetic permeability.
● Quality bearings imported from Japan guarantees smoother high-speed rotation and longer
service life.



Specifications:
Hobbywing XRotor 2205 2300KV Multicopter Outrunner Brushless Motor - CW




Specifications

Product Name



Xrotor 2205 2300KV

Product Number



30405108 / 30405109

Type

Specifications

2205-2300KV

Relevant

Motor KV

2300

No-Load Current(A/10V)

1.6A

Motor Resistance

0.068Ω

Max Continuous Power

420W

Max Continuous Current

25A/15s

Size & Weight

Stator Diameter

22mm

Stator Thickness

5mm

No.of Stator Arms

12

No.of Stator Poles

14

Weight

28.4g

Outside Diameter

28.1mm

Shaft Diameter

5mm

Body Length

17.1mm

Overall Shaft Length

31.1mm

Other Parameters

Max Lipo Cell

4S

Recommend Prop(inch)

5045 2-Blades | 5045 3-Blades

ESC

30A/3-4S


Includes/Requires:
Includes:
1 x motor (CW)
