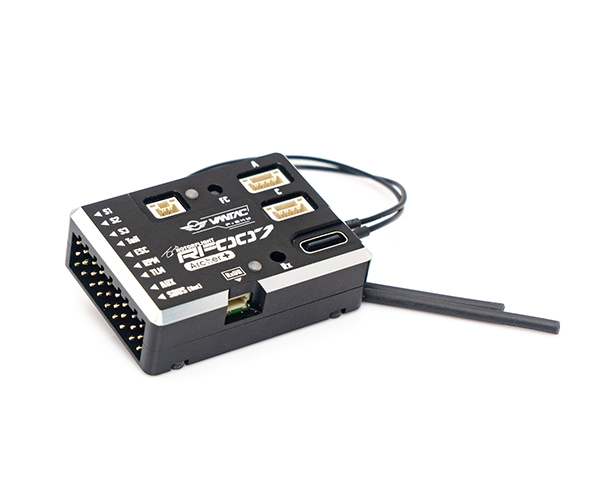

FrSky VANTAC RF007 Archer+ flybarless (FBL) helicopter flight controller |
|
|||||||
|
|||||||||
R91359805110 |
|||||||||
|
|||||||||
Tags: FrSky VANTAC RF007 Archer flybarless FBL helicopter flight controller |
The FrSky VANTAC RF007 is a cutting-edge flybarless (FBL) helicopter flight controller, designed to leverage Rotorflight’s latest 2.x flight control technology. With its built-in FrSky receiver with ACCESS, TW, or TD protocol, RF007 delivers a comprehensive range of features while providing intuitive configuration, seamless adjustments, and real-time tuning via the ETHOS radio interface.
Special thanks are due to the Rotorflight technical team and volunteers for their support and extensive flight testing, which has made this product possible.
Rotorflight Technology & Comprehensive Capabilities
At the core of RF007 is an STM32F722 MCU processor, supported by a 3-axis gyroscope, a 3-axis accelerometer, and a barometer sensor. Together, these components provide the precision and stability needed for pilots to feel confident in their machine. Additionally, the flight controller supports flight data logging with a large 128MB blackbox, allowing users to tune and troubleshoot issues with plenty of data at their disposal.
Internal FrSky Receiver & External Receiver Support
The RF007 features a built-in FrSky receiver that can directly bind with FrSky transmitters, eliminating the need for an external receiver. The RF007 Archer+ version comes with a built-in 2.4GHz Archer Plus RS receiver operating in ACCESS or ACCST V2 mode, the RF007 TWIN features a built-in dual 2.4GHz TW R6 receiver operating in TW mode, while the RF007 TANDEM offers a further long-range capability due to its inside dual-band 2.4GHz&900MHz TD receiver. The internal receiver is interfaced over UART with FBUS operation.
For users with other requirements, a receiver can also be connected via the main header or one of the expansion ports. Rotorflight supports a wide range of receiver signal protocols. For a complete list of supported protocols, users can refer to the Rotorflight Configurator tool or visit https://rotorflight.org
Field Programming/Tuning with ETHOS Lua
Thanks to the telemetry connectivity, Rotorflight offers highly intuitive and integrated Lua-based configuration tools to run on ETHOS transmitters. Users can use these tools to tune and change PID settings, servo trims, rates, mixing/geometry, filter settings, and most other Rotorflight settings quickly and easily right from the radio screen. On supported ESCs, configuration of ESC settings can also be performed with the configuration tool.
To download the configuration tool(s), visit
Rotorflight Lua Script (Text-based, non-touchscreen)
https://github.com/rotorflight/rotorflight-lua-ethos/releases
Rotorflight Lua Suite (Forms-based, touchscreen support)
https://github.com/rotorflight/rotorflight-lua-ethos-suite/releases
Flight Controller Firmware: Rotorflight 2.x
● Dimension: 43.5×31.2×13.7mm
● Weight: 25.2g
● Receiver Options:
– RF007 ARCHER+: Built-In 2.4G Archer Plus RS Receiver
– RF007 TWIN: Built-In Dual 2.4G TW R6 Receiver
– RF007 TANDEM: Built-In 2.4G&900M Dual-Band TD MX receiver
● Operating Voltage Range: 5-16V
● Operating Current (FC Only): 125mA@5V
● Voltage Measurement Range via AIN (External device): 0-80V
● RxUG Port: For Upgrading Internal RX Firmware (In case of OTA upgrade failure)
– Note: When powering this RxUG port, do not introduce additional power input from other ports to ensure the safe operation of the connected devices.
● MCU: STM32F722RET6
● Gyroscope (IMU): ICM-42688P
● Barometer: SPL06-001
● Blackbox Flash: 128MB
● Servo Ports: Servo 1, Servo 2, Servo 3, Tail
● ESC Ports: ESC (Throttle), RPM (Sensor), TLM (ESC Telemetry or other functions)
● Other Ports: AUX and SBUS Out/In
● Expansion Ports: Port A, C, and RxUG
